10-050-A3-AH | 10050A3AH | BNC Straight Solder / Clamp

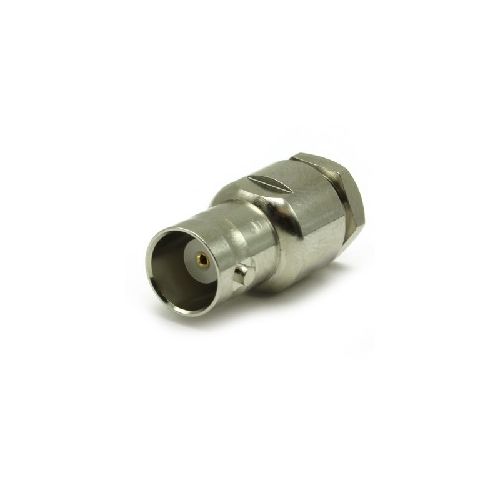

BNC Straight Solder / Clamp Jack
| Complete Electronics Part No. | 10050A3AH |
|---|---|
| Manufacturers Part No. | 10-050-A3-AH |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination Solder
Outer Contact Termination Solder
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight
Mating Force 13.6Ncm max
Un-Coupling Force 13.6Ncm max
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Suitable for RG58 or similar cables
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1
Important Note: Do not mix 50ohm and 75ohm variants of this series or damage will occur to the centre contacts
