DIN Rail DC-DC Converters

Din Rail DC/DC converter

Provide a regulated DC voltage

Load is always supplied with a regulated DC voltage
High efficiency and long service life
With low power dissipation and low heating
Free choice between Push-in and screw connection
Ex and IECEx approval enables use in potentially explosive environments
Quick and easy startup with tool-free Push-in connection technology
QUINT DC/DC converters are part of the COMPLETE line system
SFB (Selective Fuse Breaking) Technology
Static boost (125%), sustained/dynamic boost (200%) for 5 s
Currents up to 20 A
Individually adjust signaling thresholds and characteristic curves
Preventive function monitoring
Wide temperature range: -25°C … +70°C
Conformal Coating versions available

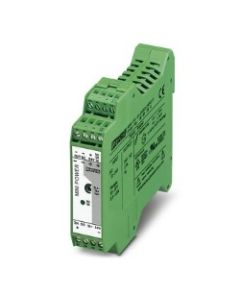

MINI-PS- 12- 24DC/ 24D C/2 | 2866284 | DC/DC Converter
Din RAIL DC/DC Converter, Nominal input range 12 V DC to 24 V DC, Nominal output voltage 24 V DC Screw connection, LED indicator, UL approved

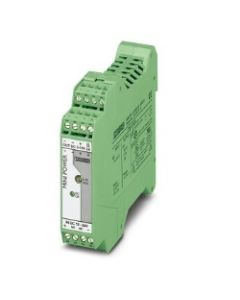

MINI-PS- 12- 24DC/ 5-15DC/2 | 2320018 | DC/DC Converter
Din RAIL DC/DC Converter, Nominal input range 12 V DC to 24 V DC, Nominal output voltage 12 V DC Screw connection, LED indicator, UL approved

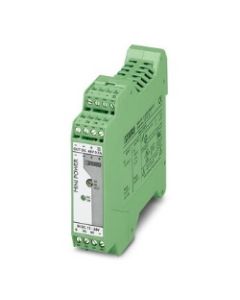

MINI-PS- 12- 24DC/48DC/0.7 | 2320021 | DC/DC Converter
Din RAIL DC/DC Converter, Nominal input range 12 V DC to 24 V DC, Nominal output voltage 48 V DC Screw connection, LED indicator, UL approved

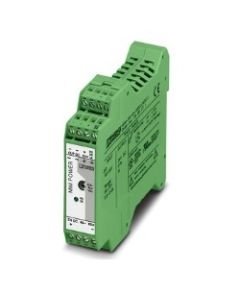

MINI-PS- 48- 60DC/24DC/1 | 2866271 | DC/DC Converter
MINI DC/DC converter for MCR technology, Nominal input range 48 V DC ... 60 V DC, Nominal output voltage 24 V DC, LED indicator, UL approved

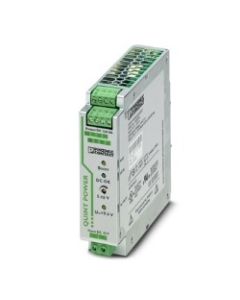

QUINT-PS/12DC/12DC/8 | 2905007 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC, Nominal output voltage 12 V DC LED indicator, UL approved

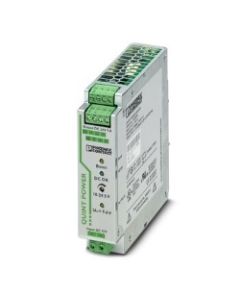

QUINT-PS/12DC/24DC/ 5 | 2320131 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 12 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved

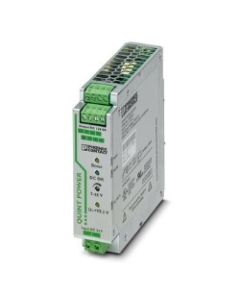

QUINT-PS/24DC/12DC/ 8 | 2320115 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 12 V DC Plugable Screw connection, LED indicator, UL approved

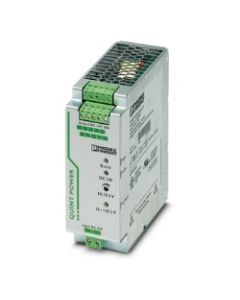

QUINT-PS/24DC/24DC/10 | 2320092 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC, Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved

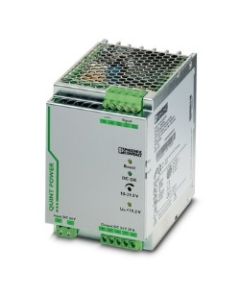

QUINT-PS/24DC/24DC/20 | 2320102 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
QUINT-PS/24DC/24DC/5 | 2320034 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC, Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved

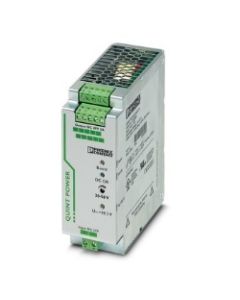

QUINT-PS/24DC/48DC/ 5 | 2320128 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 24 V DC Nominal output voltage 48 V DC Plugable Screw connection, LED indicator, UL approved

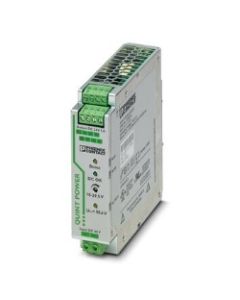

QUINT-PS/48DC/24DC/ 5 | 2320144 | DC/DC Converter
DIN Rail QUINT DC/DC Converter, Nominal input range 48 V DC Nominal output voltage 24 V DC Plugable Screw connection, LED indicator, UL approved
