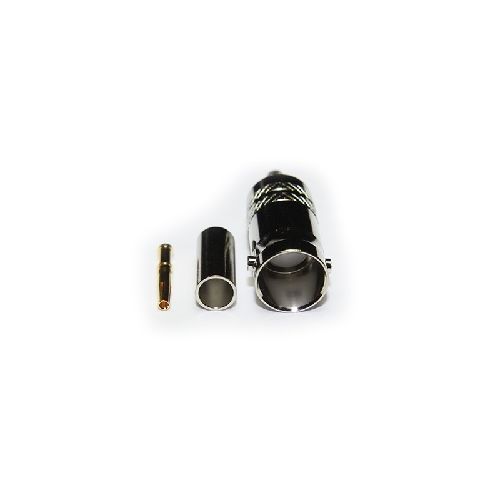

10-054-B36-AI | 10054B36AI | BNC Straight Crimp / Crimp Jack

BNC Straight Crimp / Crimp Jack, Suitable for RG59 or similar cables in group AI.
More Information
Complete Electronics Part No. 10054B36AI
Manufacturers Part No. 10-054-B36-AI
Working Frequency Up To 3 GHz
Description

Electrical Specification

  • Impedance 75 Ohm
  • Frequency Range Up to 3GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm
  • True 75 Ohm

Mechanical Specification

  • Design Standard  IEC 61169-8
  • RoHS3 Compliant
  • Centre Contact Termination: Crimp
  • Outer Contact Termination: Crimp
  • Mating Cycles: 500
  • Contact Retention:  10N min
  • Cable Retention: 120N min
  • Weight:  11.65g
  • Mating Force: 13.6N max
  • Un-Coupling Force: 13.6N max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated):  IP64

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:  Brass
  • Insulator:  PTFE
  • Centre Contact Plating: Gold
  • Outer Contact Plating: Nickel
  • Suitable for RG59 or similar cables in group AI
  • Pack Size 1
