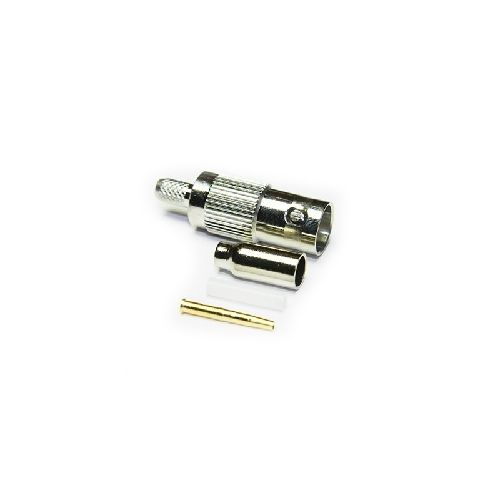

10-055-A0-AD | 10055A0AD | BNC Straight Crimp / Crimp
BNC 50 ohm straight jack for applications up to 1GHz.
| Complete Electronics Part No. | 10055A0AD |
|---|---|
| Manufacturers Part No. | 10-055-A0-AD |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance 50 Ohm
- Frequency Range Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard IEC 61169-8
- RoHS3 Compliant
- Centre Contact Termination Crimp
- Outer Contact Termination Crimp
- Mating Cycles 500
- Contact Retention 10N min
- Cable Retention 100N min
- Weight 12.1g
- Mating Force 13.6NN max
- Un-Coupling Force 13.6N max
- Operating Temperature -30 to +70 Deg C
- IP Rating ( Mated ) IP64
Materials
- Suitable for RG174 or similar cables
- Centre Contact Phosphor Bronze
- Outer Contact Brass
- Insulator Delrin
- Centre Contact Plating Gold
- Outer Contact Plating Nickel
- Pack Size 1
