10-256-A0-AD | 10256A0AD | BNC Bulkhead Mount

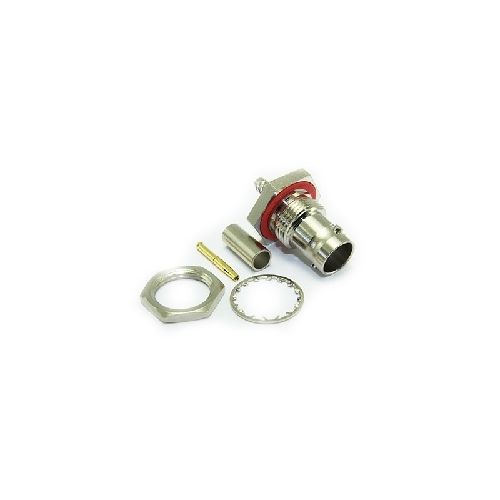

BNC Rear Mount Bulkhead Straight Crimp / Crimp Jack ( 4 part ) BNC 50 ohm straight bulkhead crimp jack, rear mounted, for applications up to 1GHz.
| Complete Electronics Part No. | 10254A0AD |
|---|---|
| Manufacturers Part No. | 10-254-A0-AD |
| Type | Panel / Bulkhead Mount |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
Impedance 50 Ohm
Frequency Range Up to 1GHz
Dielectric Withstand Voltage 1500 Veff
Insulation Resistance 5000 M-Ohm
Mechanical Specification
Design Standard IEC 61169-8
RoHS3 Compliant
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 250
Contact Retention 10N min
Cable Retention 100N min
Weight 17.75g
Mating Force 13.6N max
Un-Coupling Force 13.6N max
Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64
Materials
Suitable for RG174 or similar cables
Centre Contact Phosphor Bronze
Outer Contact Brass
Insulator Delrin
Centre Contact Plating Gold
Outer Contact Plating Nickel
Pack Size 1
