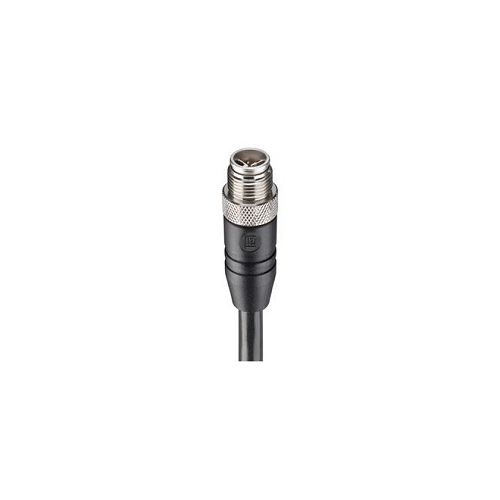

10946| RSTS 8X-478/1 M | Network Cable
Gigabit Ethernet Cat7 Data Single-Ended Cordset: M12 Standard, male, straight, 8-pin, X-coded, shielded, black body, 50 V AC / 60 V DC, 0.5 A
| Complete Electronics Part No. | 10946 |
|---|---|
| Manufacturers Part No. | 10946 |
| Category | CAT 7 |
| Cable Jacket: | PUR |
Description
RSTS 8X-478/1 M
Gigabit Cat 7 Cordset, Single ended
- Single-Ended Cordset:
- M12 Standard, male,straight, 8-pin, X-coded
- M12 8-pin, X-coded
- Shielded
- 8-wires, 4x2x0.14 mm²
- Operating Voltages: 50 V AC / 60 V DC, 0.5 A
- Outer sheath colour Black
- Operating Temperature: - 40 °C - + 80°C
- Ingress Protection: IP65, IP67
- Halogen free: IEC 60754-2
- Oil Resistance: IEC 60811-2-1
- Part Number: 10946
- Cable Length: 1 M (other lengths avaiable, see below table)
