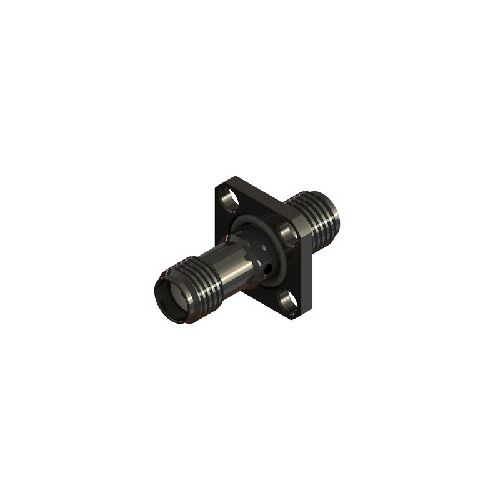

30-506-J3 | 30506J3 | SMA Bulkhead Jack to Jack Adaptor
SMA 50 ohm Straight Jack to Jack Bulkhead Adaptor, with 1/2" square 4 hole flange body. This Adaptor has a Black non reflective Plating on the Outer Body
| Complete Electronics Part No. | 30506J3 |
|---|---|
| Manufacturers Part No. | 30-506-J3 |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 750 Veff
- Insulation Resistance 5000 M-Ohm
- Return Loss -22.5db@18Ghz
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Mating Cycles: 100
- Contact Retention: 27N min
- Weight: 4.43g
- Mating Force: 23Ncn
- Un-Coupling Force: 23Ncn
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP40
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Black Nickel
- Pack Size 1
