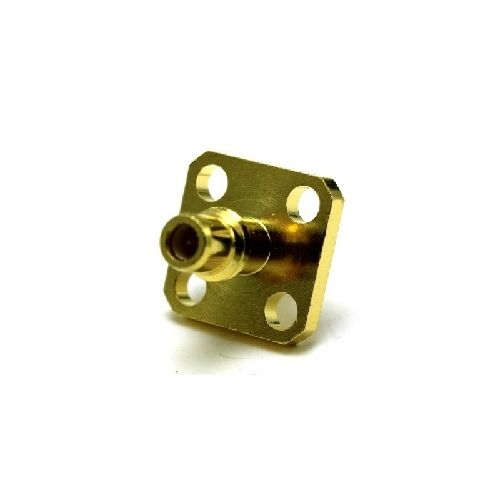

34-371-D3 | 34371D3 | SMC 4 Hole Panel Mount Jack

SMC 50 ohm straight 4 hole flange panel mount jack. With gold plated solder bucket contact and body.
More Information
Complete Electronics Part No. 34371D3
Manufacturers Part No. 34-371-D3
Male/Female: Jack
Type Panel / Bulkhead Mount
Impedance 50 Ohm
Working Frequency Up To 4.5 GHZ
Description

Electrical Specification

  • Impedance: 50Ohm
  • Frequency Range: Up to 4GHz
  • Dielectric Withstand Voltage 500 Veff
  • Insulation Resistance 1000 M-Ohm

Mechanical Specification

  • Design Standard: IEC 60169-10
  • RoHS3 Compliant
  • Centre Contact Termination: Solder
  • Mating Cycles: 250
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP44

Materials

  • Centre Contact: Phosphor Bronze
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Gold
  • Pack Size 1
