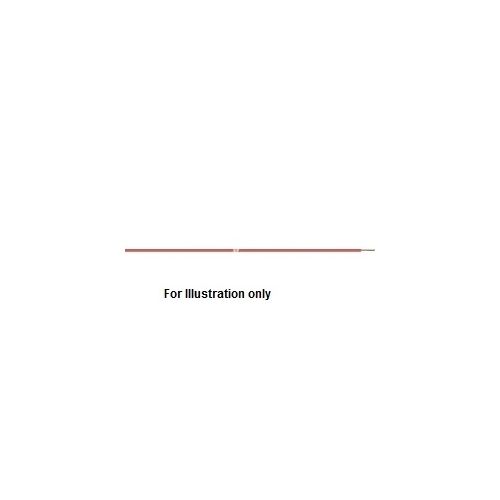

4125106S | LIY 1X0,14 GY | LAPP Single Core Cable
4125106S, Single Core Cable, PVC, stranded hook-up wire, Conductor Cross Section: 0.14mm², Core Colour: Grey
| Complete Electronics Part No. | 4125106S |
|---|---|
| Manufacturers Part No. | 4125106S |
| Control Cabinet Series | LiY |
| Number of Conductors: | 1 |
| Conductor Size: | 0.14mm² |
| Rated Voltage: | 50V |
| Core Colour: | Grey |
Description
4125106S, Single Core Cable
PVC, stranded hook-up wire
- Conductor Cross Section: 0.14mm²
- Core Colour: Grey
- Cable Outer Diameter: 1.1mm
- Flame-retardant according IEC 60332-1-2
- Approvals Based on VDE 0823
- Conductor: Stranded copper wire
- Core insulation: PVC-based
- UPP - peak-to-peak voltage: ≤ 250 V
- Operating voltage < 50 VAC
- 18 strands, each with 0.10 mm Ø
- Temperature range, Fixed Install: : -30°C to +70°C
- Lapp Part Number: 4125106S
- Cable Length: 500M
