52107102 | Lapp Nickel Plated Brass Cable Gland M20 x 1.5
SKINDICHT SHVE-M ATEX® - Metric Nickel Plated Brass Cable Gland - Thread Size: 20 x 1.5
| Complete Electronics Part No. | 52107102 |
|---|---|
| Manufacturers Part No. | 52107102 |
| Cable Gland Size: | M20 x 1.5 |
| Gland Type: | Gland |
| Housing Construction: | Metal |
| Gland Thread Length: | 6mm |
| Gland Insert Type: | Standard Size |
Description

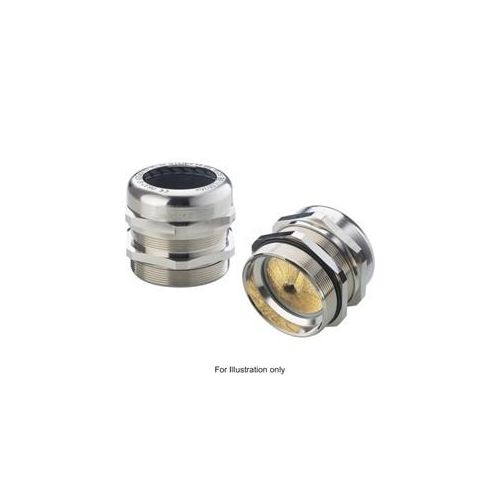

Lapp Nickel Plated Brass Cable Gland M20 x 1.5
Part Number: 52107102
- Explosion Proof
- For EMC Compliant Earthing of the Copper Braiding
- Thread Size: 20 x 1.5
- Cable Outer Diameter: 6.9 - 8.9mm
- Minimum Diameter Above Braiding: 5mm
- Wrench Size: 22mm
- Thread Length: 6.0mm
- Body Material: Nickel Plated Brass
- Insert Material: Special Polyamide
- Temperature Range: -20°C to + 80°C
