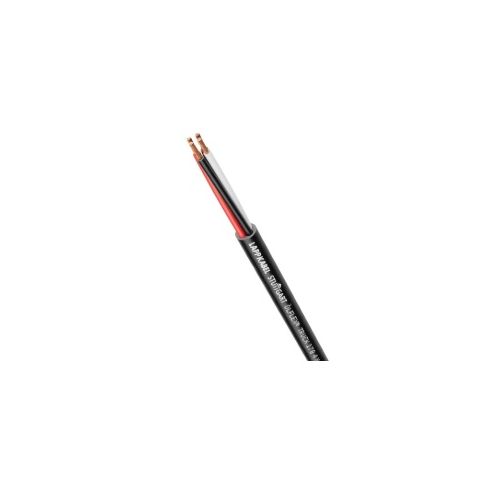

7027016 | OLFLEX TRUCK 170 FLRYY 1X2,5+5X1 | Vehicle Cable
Power and Control Cable For Commercial Vehicles, Special ADR Approval, For use in vehicles transporting hazardous goods,No Of Cores: 5x1.0 + 1x2.5mm²
| Complete Electronics Part No. | 7027016 |
|---|---|
| Manufacturers Part No. | 7027016 |
| Number of Conductors: | 6 |
| Conductor Cross Section: | Various |
| Rated Voltage: | 60 V DC |
| Special Application Series: | OLFLEX TRUCK 170 FLRYY |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
7027016 | OLFLEX TRUCK 170 FLRYY 1X2,5+5X1
Power and Control Cable For Commercial Vehicles
Special ADR Approval
Enables use in vehicles transporting hazardous goods
Number Of Cores: 5 x 1.0 + 1 x 2.5mm²
Cable Outer Diameter: 9.0mm
Conductor Colour: 1.0 = Brown/Yellow/Red/Grey/Violet; 2.5 = White, newest ISO design
Conductor: Bare Copper (Fine Wire) acc. to ISO 6722-1, table B.1
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Outer Sheath material: PVC
Outer Sheath colour: Black
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Outer Sheath material: PVC
Outer Sheath colour: Black
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
PWIS free - Yes
Oil resistant - Yes
UV resistant - Yes
PWIS free - Yes
Suitable for outdoor use
Nominal voltage: 60 V DC according to IEC
Temperature Range: -40°C to +85°C
Min Bend Radius: 12 x Outer Diameter
Cable Length: 50M
Lapp part number: 7027016
For commercial verhicles
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
