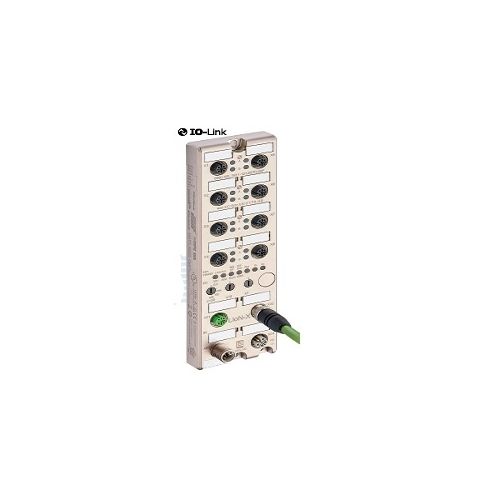

935701004 | LioN-Xlight 8 x IO Module | Modbus TCP
I/O Systems: Active - Standalone, 8 IO Class A, 4 Poles D Coded, Modbus TCP, Zinc Die Cast Housing, IP Rating: IP65, IP67, IP69K
| Complete Electronics Part No. | 935701004 |
|---|---|
| Manufacturers Part No. | 935701004 |
Description
0980 LSL 3311-121-0006-008
8 x M12 A-coded I/O connection 5 Pole
- 2 x M12 D-coded Ethernet connection 4-poles
- 2 x M12 L-coded power supply
- Protocol: Modbus TCP
- IO Function: 8 IOL (Class A)
- Supply Voltage (nominal): 24 V DC (SELV/PELV)
- Supply Voltage (Range): 20V DC to 30 V DC
- Operating Tempersture: -20 °C to 60 °C
- Reverse Polarity protection
- Status Indicator: Green LED
- Diagnostic Indicator: Red LED
- IP rating: IP65, IP67, IP69K
- Contact base material:
- M12, D-coded, CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated
- Contact bearer material: PA / TPU
- (W x H x D) 60mm x 31mm x 200mm
- Weight: 500 g
