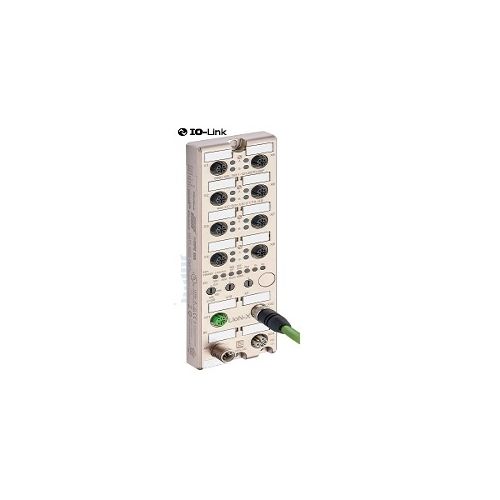

935702004 | LioN-Xlight 4xIO-Link Class A, +8 DI | Modbus TCP
I/O Systems: Active - Standalone, 4 x IO Class A, 4 Poles D Coded + 8 DI, Modbus TCP Zinc Die Cast Housing, IP Rating: IP65, IP67, IP69K
| Complete Electronics Part No. | 935702004 |
|---|---|
| Manufacturers Part No. | 935702004 |
Description
0980 LSL 3310-121-0006-008
4 IO-Link Master Ports Class A + 8 DI
- 2 x M12 5 pole L-coded power supply
- Protocol: Modbus TCP
- IO Function: 8 IOL (Class A)
- Transmission Rate: Fast Ethernet (10/100 Mbit/s), Full Duplex
- Transmission Method: 100 BASE-TX, with auto negotiation and auto crossing
- Cycle Time / update Rate: min. 1 ms
- Nominal Current C/Q (pin 4): 500mA
- Nominal Current 1L+ (pin 1): 2A
- Supply Voltage (nominal): 24 V DC (SELV/PELV)
- Supply Voltage (Range): 20V DC to 30 V DC
- Overload protection, short-circuit protection
- Status Indicator: LED white or yellow per channel
- Diagnostic Indicator: Red LED
- Operating Tempersture: -20 °C to 60 °C
- IP rating: IP65, IP67, IP69K
- Contact base material: CuSn, Gold-plated | M12 Power, L-coded, CuNi, Gold-plated
- Contact bearer material: PA / TPU
- (W x H x D) 60mm x 31mm x 200mm
- Weight: 500 g
