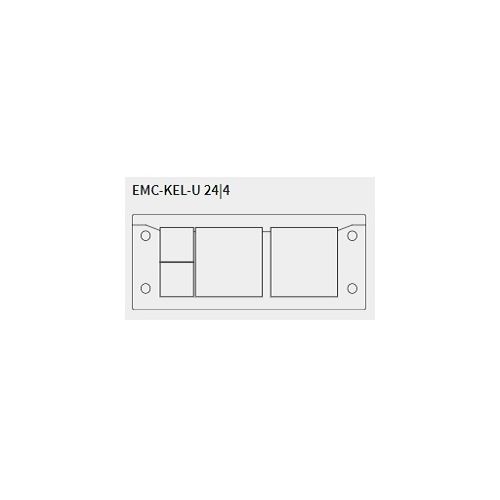

99401 | EMC-KEL-U 24/4 | Split EMC Cable Entry Frame
Split EMC Cable Entry Frame, Frame Depth: 17mm, Cut-out: 36 x 112mm, Material: Polyamide (PA), highly conductive coating
| Complete Electronics Part No. | 99401 |
|---|---|
| Manufacturers Part No. | 99401 |
| ATEX Approval: | Not ATEX Approved |
| Series: | EMC - KEL |
| Cut Out Dimensions: | 36 x 112mm |
Description
Split EMC Cable Entry Frame
For shielding cables with connectors
Max number of cables: 4
Max cable diameter: 35mm
Length: 147mm
Width: 58mm
Height: 17mm
Mounting height: 17mm
Cut out size: 112 x 36mm
No of screw holes: 4
Diameter of screw holes: 5.8mm
Screw material: Mild steel, galvanicall zinc plated
Suitable for grommits: 2 x EMC-KT small & EMC-KT large
Material: Polyamide, highly conductive coating
Flame class: UL94-V0, self-extinguishing
Operating temperature:-40C° to 140C°
Mounting options: Screw type mounting
Vibration Proof
Part Number: 99401
EAN: 4251269319372
PU: 1
