Arduino Ethernet PLC Starter kit

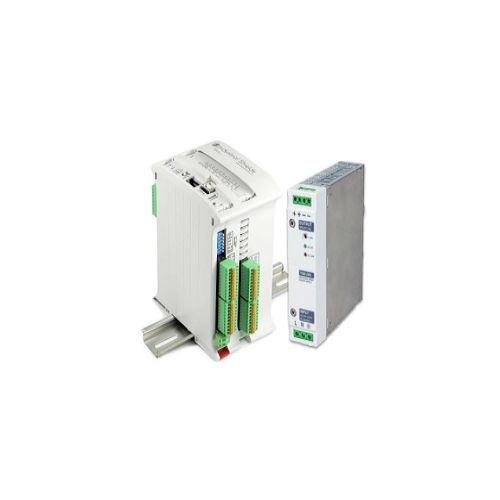

Arduino Ethernet PLC Starter kit. Includes: M-Duino PLC Arduino 21+ & Power Supply DIN Rail 30W & connection wire
| Complete Electronics Part No. | EthernetPLCStarter kit |
|---|
Description
MDUINO PLC ARDUINO ETHERNET 21 I/Os PLUS:
- Includes:
- 13 Input
- 8 Output
- POWER SUPPLY 24Vdc, 30W
- ELECTRICAL CABLE 0.75mm (x5m Blue, x5m Yellow, x5m Black)
Inputs (Arduino Mega included)
- 13 x Inputs:
- 8 x Digital Isolated (5-24Vdc).
- 6 x of 8, Analog (0-10Vdc) configurable by Software.
Outputs (Arduino Leonardo included)
- 8 Outputs:
- 8 x Digital Isolated (5-24Vdc) / (3 of which) PWM Isolated
- 3 of which Analog (0-10Vdc) configurable by switch.
Communications
- 1 x Ethernet port.
- 1 x USB port (type B).
- 1 x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- 3x TTL ports.
- 1 x RS-232 port.
- 1 x HALF/FULL Duplex RS-485 port.
- 1 x SPI external port (Using MOSI,MISO, SS pins of Arduino)
- TCP IP / Modbus TCP. / Modbus RTU
- WebServer capacity
- Industrial Protocols
See pinout to use communications ports because the number of inputs / outputs can be reduced.
Other Information
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
- µSD Socket (using SPI port, chip select D53 pin).
- 100x75x115mm
- DIN Rail mounting.
- Max consum.: 1.2A
- Flash Memory: 256kB (8kB for bootloader)
- SRAM: 8kB
- EEPROM: 4kB
- Clock Speed: 16MHz
*Read the manual to set the signal type.
