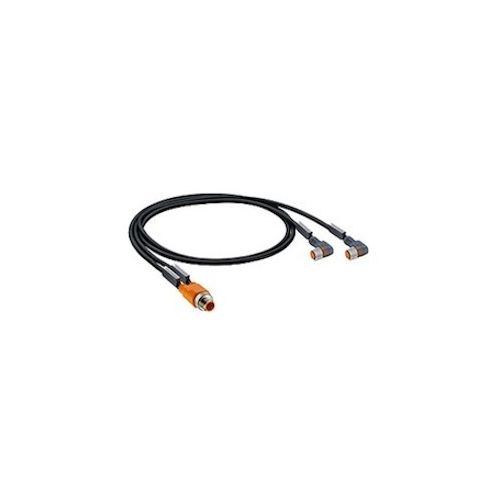

ASB 2-RKMWV/LED A 3-224/3 M | 44046 | Cordset
Actuator/Sensor Cordset, Double ended. M12 Duo male to Two M8 female connectors with LED
| Complete Electronics Part No. | 44046 |
|---|---|
| Manufacturers Part No. | 44046 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x M8 Female |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 3 |
| Rated Voltage: | 32V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 3 Metres |
| Led Colour: | Yellow / Green |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-RKMWV/LED A 3-224/3 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector
- To
- Two M8 female right angle connectors with Self-locking threaded joint
- LED operation and function indicator
- 3 Poles
- 3 Metre
- PUR Jacket
- Halogen free
- Black
