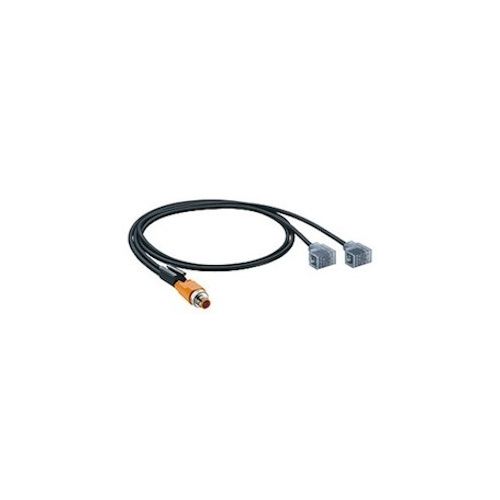

ASB 2-VC 1A-1-3-226/0,3 M | 43795 | Cordset Form C IND
Actuator/Sensor Cordset, Double ended. M12 Duo male to Two Valve Connectors. 5 pole. 3m
| Complete Electronics Part No. | 43795 |
|---|---|
| Manufacturers Part No. | 43795 |
| Type: | Cordset |
| Cordset Type: | Double Ended |
| Cordset Gender M12: | M12 Duo Male - 2x Valve Connectors |
| Coded Option (Circular) | A |
| Cable Entry: | Straight - Right Angled |
| Number of poles | 5 |
| Valve Connector Form | C |
| Rated Voltage: | 32V |
| Rated Current: | 4 A per cable / 4 A max. at 40°C |
| Cable Length: | 3 Metres |
| Cable Jacket: | PUR |
| IP Rating: | IP67 |
Description
ASB 2-VC 1A-1-3-226/0,3 M
Actuator/Sensor Cordset, Double ended
- M12 Duo male connector with self-locking threaded joint
- To
- Two valve connectors according to DIN EN 175301 803, Form C IND (9.4 mm)
- Cable exit 0° and 180°
- 5 Pole
- 0,3 Meter
- PUR jacket
- Halogen free
- Black
