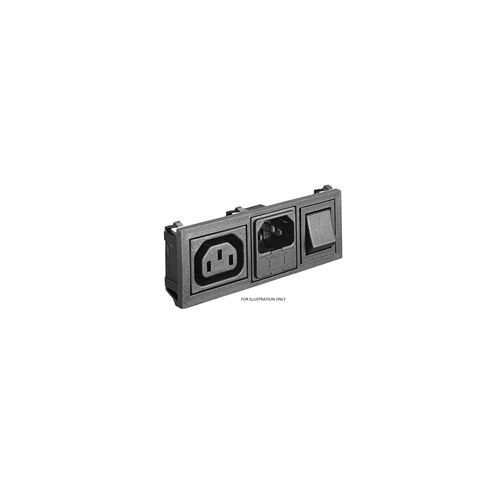

BZH11/Z0000/70 | BZH11Z000070 | Polysnap IEC Inlet / Outlet
Polysnap IEC Fused C14 Power Inlet and Sheet F Power Outlet with double pole marked switch
| Complete Electronics Part No. | BZH11Z000070 |
|---|---|
| Manufacturers Part No. | BZH11/Z0000/70 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet / Outlet |
| IEC Class | Sheet C14 Class I & Sheet F Class I |
| Number of Inlets / Outlets | 1 / 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Horizontal |
| Number of poles | 3 |
| Male/Female: | Male and Female |
| Switch Type: | Double Pole |
| Fuse Size: | 5 x 20mm |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
Description
BZH11Z000070
Polysnap Fused IEC Power Inlet / Outlet
- Single Fuse: 5 x 20mm
- C14 Power Inlet and Sheet F Power Outlet
- Double pole marked I/O switch
- 6.3mm tab
- Horizontal
- Snap To Panel Panel Mount
- Rated Current: 10A
- Rated Voltage: 250V ac
