BZV05/Z0000/01 | BZV05Z000001 | Bulgin IEC

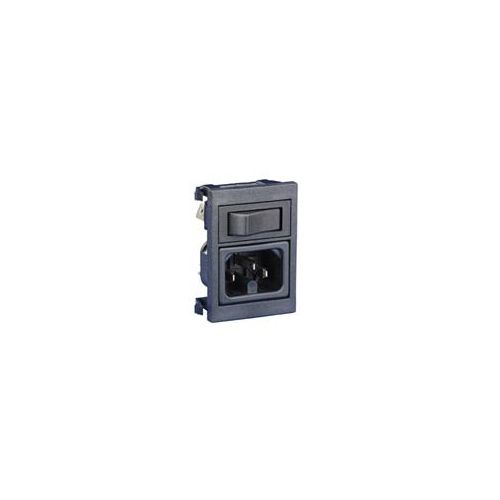

Polysnap Vertical - C16 IEC Inlet with a SP Switch
| Complete Electronics Part No. | BZV05Z000001 |
|---|---|
| Manufacturers Part No. | BZV05/Z0000/01 |
| Type: | Panel Mount Connector |
| IEC Type | IEC Inlet |
| IEC Class | Sheet C16 Class 1 |
| Number of Inlets / Outlets | 1 / 1 |
| Mounting: | Snap Fit Fixing |
| Module Arrangement | Vertical |
| Number of poles | 3 |
| Male/Female: | Male |
| Switch Type: | Single Pole |
| Termination: | 6.3mm Spade Terminals |
| Rated Voltage: | 250V |
| Rated Current: | 10 Amps |
| Temperature: | Hot Condition |
Description
BZV05/Z0000/01
Polysnap Vertical - C16 IEC Inlet
- SP Switch
- Hot Condition
- Panel Mount
- Snap in
- 6.3mm Tags (Inlet)
- 10Amp
- 250Vac
- -40°C/+70°C
