Weatherproof Switches & Sockets
PROTECTA Series
Flush and panel mounting sockets - Weatherproof switches and Sockets
The Protector range from Scame UK offers a range of waterproof switches, sockets and control devices.
The range of EN 60669-1 control devices available from Scame UK offers four different versions all available as flush mounting or surface mounting.
Versions:
- One way switch – single pole
- Two way switch – single pole
- Double pole switch
- Bell push switch – single pole
Technical data
- Rated current – 10A-10AX-20A-20AX
- Rated voltage – 250V
- IP Rating: IP66
- Operating temperature - -20◦c +60◦c
- Colour – Grey RAL 7035
SWITCH SOCKET OUTLETS
- Tinted polycarbonate cover to see inside
- Polycarbonate box shockproof, chemical and UV resistant
- Ø20 cable entries
- Stainless steel screws
- A wing on the lid assist one-handed opening
- 3 pin operated shutter on socket
- Specifically high formulated gel seal to maintain protection degree when the plug is inserted
-

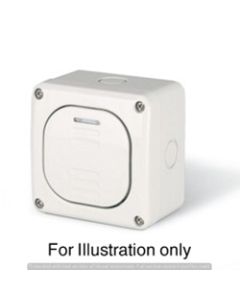

137.5211 | 1375211 | Scame | Protecta SeriesSingle Pole Switch, Two way, Single Pole, Rated Voltage: 250V, Rated Current: 10A, Surface Mount -

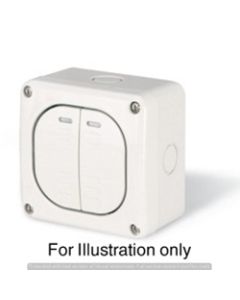

137.5221 | 1375221 | Scame | Protecta SeriesSingle Pole Double Switch with Neon Indicators, Two way -
137.5222 | 1375222 | Scame | Protecta SeriesSingle Pole Double Switch with Neon Indicators, Two way, Rated Voltage: 250V, Rated Current: 20A, Surface Mount -
-
137.5462 | 1375462 | Scame | Protecta SeriesDouble Pole Switch, One way, Rated Voltage: 250V, Rated Current: 20A, Surface Mount -

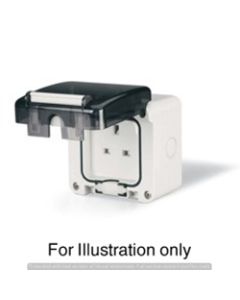

137.6001 | 1376001 | Scame | Protecta SeriesSingle Unswitched Socket, BS1363 Rated Current: 13A Dimensions: 95 x 95mm -

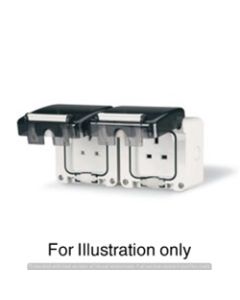

137.6002 | 1376002 | Scame | Protecta SeriesTwin Unswitched Socket, BS1363 Rated Current: 13A Dimensions: 195 x 95mm -

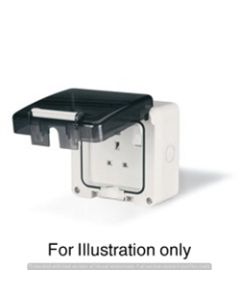

137.6022 | 1376022 | Scame | Protecta SeriesSingle Socket Outlet, DP Switch, Rated Voltage: 250V, Rated Current: 13A, Dimensions: 1154 x 115mm -

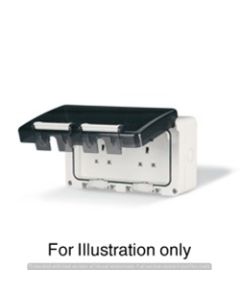

137.6042 | 1376042 | Scame | Protecta SeriesDouble Socket Outlet, DP Switch with Neon, Rated Voltage: 250V, Rated Current: 13A,Dimensions: 195 x 115mm -

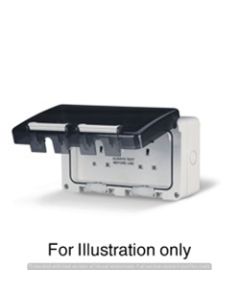

137.6043 | 1376043 | Scame | Protecta SeriesDouble Socket Outlet, DP Switch with Neon and RCD, Rated Voltage: 250V, Rated Current: 13A,Dimensions: 195 x 115mm
