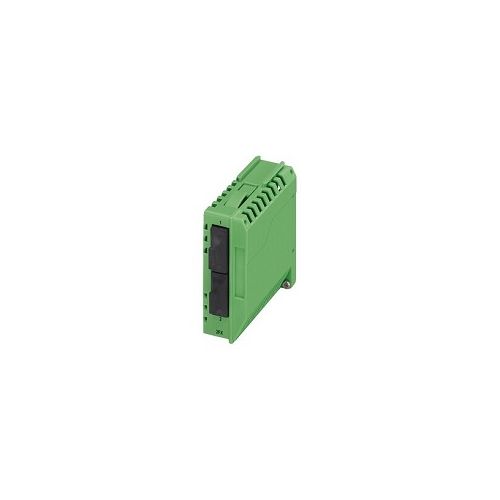

FL IF 2FX SC-D | 2832425 | Media Module
Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm), SC, connection direction downward
| Complete Electronics Part No. | 2832425 |
|---|---|
| Manufacturers Part No. | 2832425 |
Description
Fibre Optic Interface Module
For connecting 100 Base-FX multi-mode glass fibers (1300 nm)
- Fiber optic interface module for connecting 100 Base-FX multi-mode glass fibers (1300 nm)
- Supply Voltage via head station
- Power Supply Connection: From FL SWITCH GHS or FXT
- Connection Method: SC Connector (Direction Downward)
- Transmission Speed: 100 Mbps
- Transmission Length: 10000 m (maximum (dependant on the fiber used))
- Wavelength: 1300 nm
- EMC: class A product
- No of Channels: 2
- Typical current consumption: 200 mA
- Degree of protection: IP20
- Operating Temperature: 0 °C ... 55 °C (non-condensing)
- Width: 31mm
- Height: 75.7 mm
- Depth: 72.5 mm
- Colour: Green
- Weight per Piece (excluding packing): 80 g
- Housing material: PA
- Part Number 2832425
- Customs tariff number: 85176200
- Country of origin: DE
