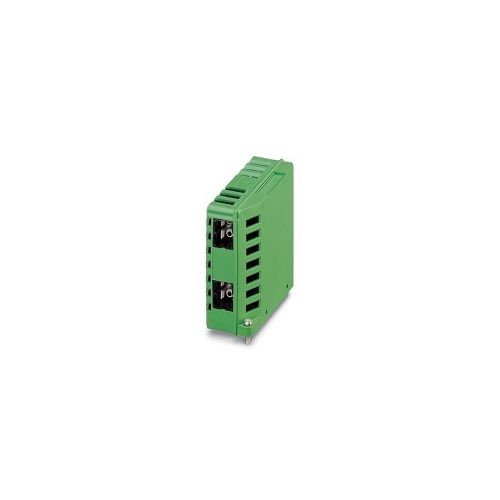

FL IF 2POF SCRJ-D | 2891084 | Media Module

Media Module Fiber optic interface module for connecting 100 Base-FX POF/PCF fibers (650 nm). SC-RJ
More Information
Complete Electronics Part No 2891084
Manufacturers Part No. 2891084
Description

Fibre Optic Interface Module

SC-RJ, Connection Direction Downward

  • Fiber optic interface module for connecting 100 Base-FX POF/PCF fibers (650 nm)
  • Supply Voltage 48 V DC (via head station)
  • Power Supply Connection: From FL SWITCH GHS or FXT
  • Connection Method: Can be plugged onto FL SWITCH MM HS or FL MXT
  • Transmission Speed: 100 Mbps
  • Transmission Length: 50 m (including 3 dB system reserve, polymer fiber with F-K 980/1000 230 dB/km)
  • Transmission Length 2: 100 m (PCF fiber with F-S 200/230 10 dB/km)
  • No of Channels: 2 (SC-RJ)
  • Typical current consumption: 200 mA
  • Degree of protection: IP20
  • Operating Temperature: -40 °C ... 75 °C
  • Width: 31mm
  • Height: 73.5mm
  • Depth: 72.5mm
  • Colour: Green
  • Weight per Piece (excluding packing): 80 g
  • Part Number 2891084
  • Customs tariff number: 85176200
  • Country of origin: DE
