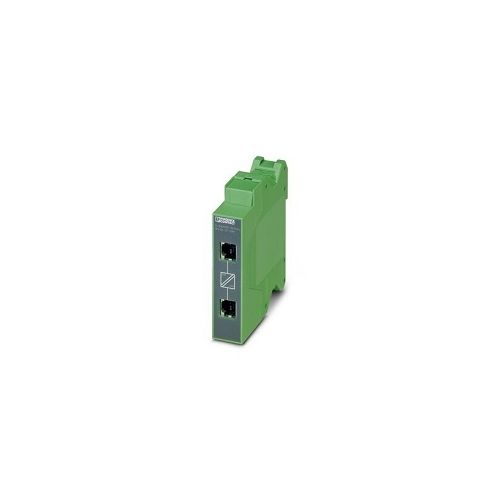

FL ISOLATOR 100-RJ/RJ | 2313931 | Network Isolator
Passive network isolator for electrical isolation in Ethernet networks. This protects Ethernet devices from potential differences of up to 4 kV.
| Complete Electronics Part No. | 2313931 |
|---|---|
| Manufacturers Part No. | 2313931 |
| Ethernet Product Type: | Network Isolator |
Description
Network Isolator - FL ISOLATOR 100-RJ/RJ
- Ethernet / PROFINET Network Isolator
- Two RJ45 jacks
- Connection method: RJ45 (shielded) x 2
- Serial transmission speed: 10/100 Mbps
- Width: 22.5 mm
- Height: 99 mm
- Depth: 92 mm
- Colour: Green
- Housing Material: Plastic
- Ingress Protection: IP20
- DIN rail mounting
- DNV GL CertifiedUL Certified:ISA-S71.04-1985 G3 Harsh Group A
- UL certified (508 Listed)
- Conformance with EMC Directive 2014/30/EU
- Operating Temperature: -25°C ... 75°C
- Weight per Piece (excluding packing): 116.8 g
- Part Number 2313931
- Customs tariff number:85437090
- Country of origin: DE
