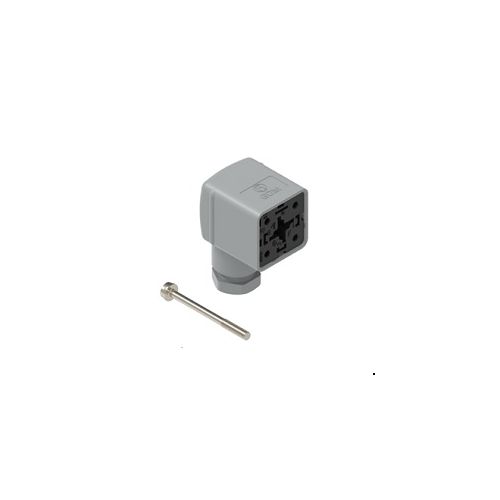

GDM216B-A0U-10F | 934888122 | Valve Connector 2+PE
GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE; PE across cable outlet), Gasket sold seperately, 230 V AC/DC, 16A
| Complete Electronics Part No. | 934888122 |
|---|---|
| Manufacturers Part No. | 934888122 |
| Type: | Cable Socket |
| Voltage: | AC/DC 250V |
| Number of poles | 2+PE |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| IP Rating: | IP65 |
Description
GDM216B-A0U-10F
2+1PE; PE across cable outlet
Form A
2 +PE (3pin)
Grey Housing
Screw Type
Cable Gland: PG11
Without Circuitry
Operating Voltage: 230 V AC/DC
Rated Current 16 A
Field Attachable
Gender: Female
Unshielded
Gasket Material: Sold seperately
Central Screw
Screw Connection
Contact Plating: Cu/Sn
Housing material: PA GF
Operating Temperature: -40°C - +125°C
IP Rating: IP65
