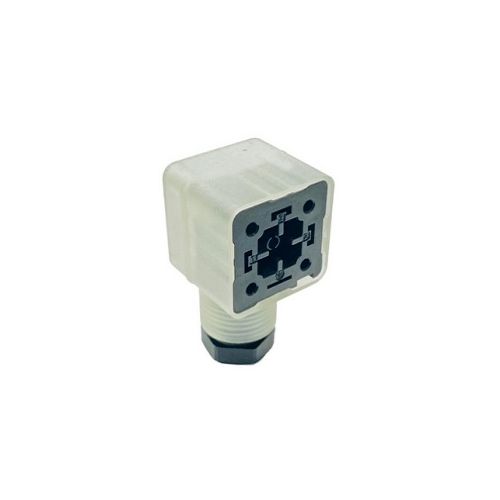

GDM21F6-V48-10D | 934888040 | Valve Connector 2+PE

GDM Standard DIN Field Attachable Connector: Form A, 3-pin (2+1PE), With Bridge Rectifier, Varistor & Yellow LED, 48 V AC/DC, 1A, M16 Cable Gland, IP65
More Information
Complete Electronics Part No. 934888040
Manufacturers Part No. 934888040
Type: Cable Socket
Voltage: AC/DC 24 V
Number of poles 3
Cable Gland Size: M16
Valve Connector Form A
Termination: Screw
Insert Type: Bridge Rectifier + Varistor
Led Colour: Yellow
IP Rating: IP65
Description

GDM21F6-V48-10D

48 V AC/DC 1 Amp

  • Form A
  • 2 +PE (3pin)
  • Translucent Housing
  • Bridge Rectifier
  • Varistor
  • Yellow LED
  • Cable Gland: M16
  • Suitable Cable: Ø 4.5 - 10 mm
  • Operating Voltage: 48 V AC/DC
  • Rated Current 1A
  • Field Attachable
  • Gender: Female
  • Unshielded
  • Central Screw
  • Screw Connection
  • Gasket: Sold Seperately
  • Contact Plating: Cu/Sn
  • Housing material: PA GF
  • Operating Temperature: -25°C - +80°C
  • IP Rating: IP65

***Replacement for: 934422002, *GDML 2016 GB1 LED 48 schwarz ( Yellow LED instead of Red LED)**
