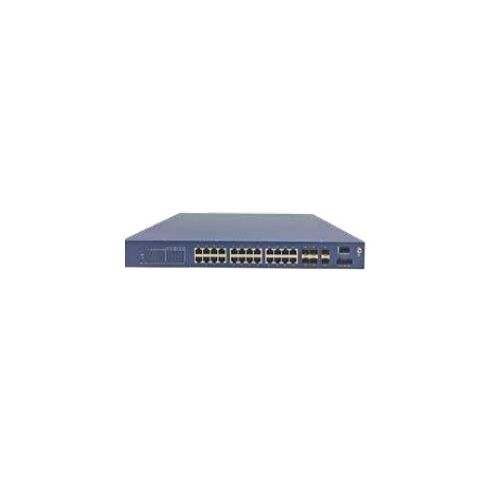

942 289-001|942289001 | Hi-SCOM BN3049-204C20TTM9MS
BN3049 Series, Gigabit Managed 26-port Ethernet Switch. 24 x10/100/1000 Mbit/s PoE ports (including 4 combo ports), and 2 x 1000 Mbit/s SFP ports
| Complete Electronics Part No. | 942289001 |
|---|---|
| Manufacturers Part No. | 942 289-001 |
| Ethernet Product Type: | Managed Switch |
| Managed / Unmanaged: | Managed |
| Total 100/1000 (FX) Ports: | 2 |
| Total 10/100/1000 (RJ45) Ports: | 20 |
| Number Of PoE Ports: | 20 |
| Number of Combo Ports: | 4 |
| Total Ethernet Ports: | 26 |
| FX (Optical) Connector Type: | SFP |
| Operating Voltage: | AC 100 - 240V |
| Mounting: | 19" Rack Mount |
| IP Rating: | IP30 |
Description
BN3049 - 204C20TTM9MS, Gigabit PoE Switch
26-port Ethernet switch
- Managed
- 20 x 10/100/1000 Mbit/s PoE (IEEE 802.3af/at) ports
- 4 x Gigabit combo ports
- 2 x 1000 Mbit/s SFP ports
- 4 Mbit/s memory
- Total PoE Power Budget: Output: 370 w (Max) @ 48 VDC
- Operating Voltage: 110/220 V AC (90 - 264 V)
- Power Supply: 1 x 3 Pin
- Operating Temperature: -25°C up to +65°C
- Ingress Protection: IP30
- Conformal Coating: Yes (dependent on device variant)
- Dimensions (W*H*D): 440x44.5x350mm
- Mounting: 19" control cabinet
- Warranty: 2 Years
Accessories to order separately
- Gigabit Ethernet SFP modules
- Industrial Hivision Network Management software
