INC INB Series (VG95234)

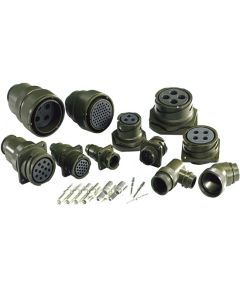

INB Circular Bayonet Connector

 INB circular bayonet coupling connector series was designed in accordance with VG95 234 specification. The INB series has a bayonet coupling design that offers exceptional vibration protection and easy connection/disconnections. These INB connectors are interchangeable with the corresponding MIL-DTL-5015 connectors but due to the different coupling systems they are not intermateable, both connector types feature the same shell dimensions and contact layouts.

Materials

Shell: Aluminium alloy, olive drab chromate coating over zinc plate

Insulator: Polychloroprene rubber

Grommet and Seal: Polychloroprene rubber

Contacts: Copper alloy, silver plate

INB Box Mount           INB Class R



Temperature range: -55⁰C to 125⁰C

See catalogue for further technical details and insert arrangement



INB Ordering Information:

INB Order Info
