PXM7011/10S/CR/0911/SN | PXM701110SCR0911SN | Bulgin 7000 Series

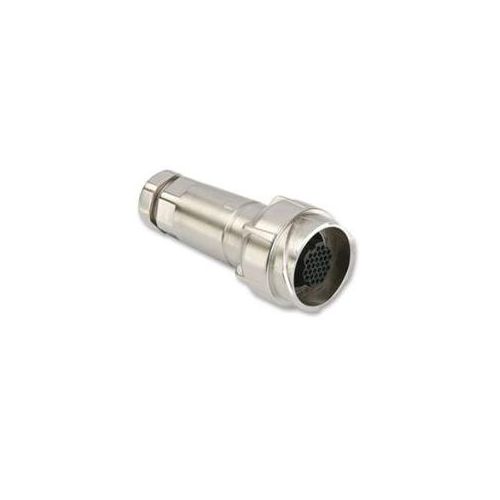

7000 Series Buccaneer Metal 10 Pole Female Flex In-Line Cable Connector
| Complete Electronics Part No. | PXM701110SCR0911SN |
|---|---|
| Manufacturers Part No. | PXM7011/10S/CR/0911/SN |
| Type: | Cable Socket |
| Mounting: | Cable |
| Number of poles | 10 |
| Cable Gland Size: | 9-11 mm |
| Termination: | Crimp |
| Male/Female: | Female |
| Housing Construction: | Metal |
| Cable Entry: | Straight |
| Rated Voltage: | 600V |
| Rated Current: | 10A |
| IP Rating: | IP66 / 68 / 69K |
Description
PXM7011/10S/CR/0911/SN
10 Pole Female Flex In-Line Cable Connector
- Voltage: 600Vac/dc
- Current: 10 Amps
- Gender: Female
- Application: Cable Mount
- With Braid Termination Accessory
- Contacts: Sockets
- Termination: Crimp, excluded, order separately
- Temperature range -40 °C/+120 °C
- Mates With Flex Cable Connector PXM7010 ;
