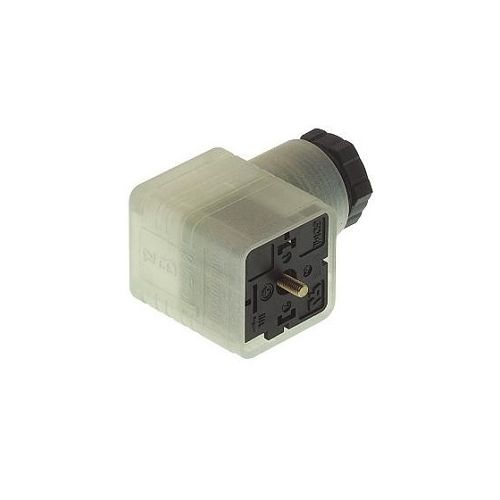

GDML 3011 LED 230 RG Black | 933748212 | Connector
DIN 43650 - 3 Pole + Earth Cable Socket with Function indicator (glow lamp) (2 LED`s) for pressure switch, LED Green and Red, PG11, Form A
| Complete Electronics Part No. | 933748212 |
|---|---|
| Manufacturers Part No. | 933-748-212 |
| Type: | Cable Socket with Electronic Insert |
| Voltage: | AC/DC 250V |
| Number of poles | 3+PE |
| Cable Gland Size: | PG11 |
| Valve Connector Form | A |
| Termination: | Screw |
| Insert Type: | For Pressure Switch |
| Led Colour: | Red / Green |
| IP Rating: | IP65 |
Description
GDML 3011 LED 230 RG Black
Valve Connector 3 pole + Earth
- PG 11
- Form A
- Function indicator (glow lamp) (2 LED`s) for pressure switch
- LED green (3)LED red (2)
- Suitable cables: 4.5 mm to 11 mm diameter
- Rated current: 8 A
- Rated voltage:DC 250 V
