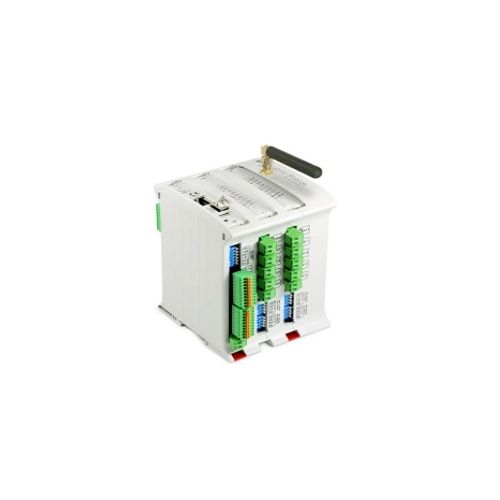

M-DUINO PLC Arduino Ethernet & GPRS

• Ethernet & GPRS 38R I/Os
• Analog/Digital PLUS
• Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
• Flash Memory: 256KB of which 8KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Arduino Board: Arduino Mega 2560

This PLC can be programmed using the Arduino IDE platform

The GPRS Controller is programmed through the USB ports.

This PLC can also be programed through Ethernet port remotely

 Inputs (Arduino Mega included)

• – 9 Inputs:

  (8x) 10bit – Analog (0-10Vdc) / Digital (5-24Vdc) Inputs, configurable by software

  (1x) Interrupt Input (24Vdc). “Can work like Digital Input (5-24Vdc)

Outputs (Arduino Mega included)

• – 22 Outputs:

16x) Relay outputs (220Vac –‐ 5A)

(6x) Analog (0–‐10Vdc, 8bit ) / Digital (24Vdc) Output

  Communication:

- (1x) GPRS/GSM (based on SIM800L)

 -(1x) Ethernet port.

– (1x) USB port (type B).

– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)

– (1x) RS-232 port.

– (1x) HALF/FULL Duplex RS-485 port.

– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)

– TCP IP / Modbus TCP. / Modbus RTU

– WebServer capacity (just through Ethernet)

 – Industrial Protocols

•  (SIM Card not included).

Other technical specifications

RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)

µSD Socket (using SPI port, chip select D53 pin).

100x75x115mm

DIN Rail mounting.

Max consum.: 1.2A

Flash Memory: 256kB (8kB for bootloader)

SRAM: 8kB

EEPROM: 4kB

Clock Speed: 16MHz

 *For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
