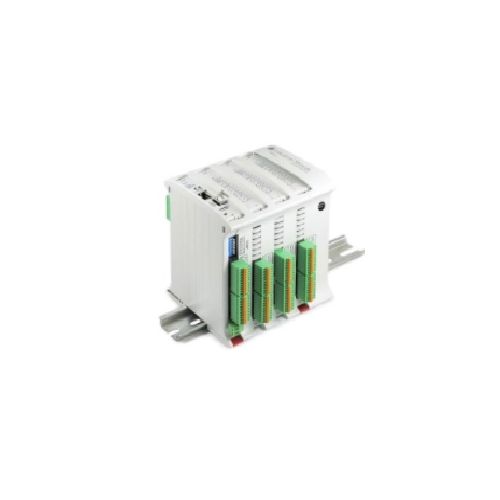

M-DUINO PLC Arduino, DALI

• Ethernet & GPRS 54ARA I/Os
• Analog/Digital/ RelayPLUS

The GPRS Controllers family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

This PLC can be programmed using the Arduino IDE platform

The GPRS Controller is programmed through the USB ports.

This PLC can also be programed through Ethernet port remotely

• Inputs (Arduino Mega included)

• – 26 Inputs:

  (13x) Analog Inputs (0-10Vdc, 10bit) / Digital Inputs (5-24Vdc) configurable by software.

  (9x) Isolated Digital Inputs (5-24Vdc)

  (3x) Interrupt Inputs (5-24Vdc). "Can work like Digital Input (5-24Vdc)

• Outputs (Arduino Mega included)

  – 25 Outputs:

  (8x) Relay Outputs (220Vac - 5A)

  (8x) Analog (0-10Vdc, 8bit) / Digital Outputs (5-24Vdc)

  (9x) Digital Outputs (Isolated 24Vdc max)

• Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
• Flash Memory: 256KB of which 8KB used by bootloader
• SRAM: 8 KB
• EEPROM: 4 KB
• Arduino Board: Arduino Mega 2560

Communication:

- (1x) GPRS/GSM (based on SIM800L)

 -(1x) Ethernet port.

– (1x) USB port (type B).

– (1x) I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)

– (1x) RS-232 port.

– (1x) HALF/FULL Duplex RS-485 port.

– (1x) SPI external port (Using MOSI, MISO, SS pins of Arduino)

– TCP IP / Modbus TCP. / Modbus RTU

– WebServer capacity (just through Ethernet)

 – Industrial Protocols

•  (SIM Card not included).
