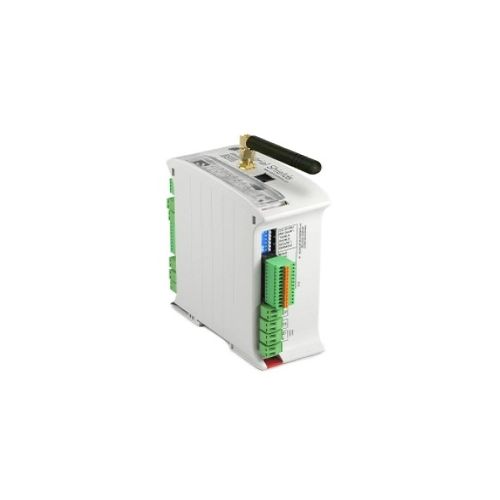

006001001300 | PLC ARDUINO ARDBOX 20 I/Os RELAY & GPRS
PLC ARDUINO ARDBOX 20 I/Os RELAY HF MODBUS & GPRS, 10 Inputs, 10 Outputs
| Complete Electronics Part No. | 006001001300 |
|---|---|
| Manufacturers Part No. | 006001001300 |
| Number of I/O's | 20 |
Description
Arduino Ardbox Relay HF MODBUS & GPRS, 20 I/O’s
- Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
- Flash Memory: 32KB of which 4KB used by bootloader
- SRAM: 25 KB
- EEPROM: 1 KB
- Arduino Board: Arduino Leonardo
- This PLC can be programmed using the Arduino IDE platform
- The GPRS Controller is programmed through the USB ports.
- expandable up to 127 modules through I2C,
Inputs (Arduino Leonardo included)
- 9 Inputs:
- 9x Digital (7-24Vdc).
- 8x of 10x, Analog (0-10Vdc) configurable by Software.
Outputs (Arduino Leonardo included)
- 10 Outputs:
- 8x Relay outputs (220Vac – 5A)
- 2x Analog Output (0-10Vdc)*
Communications
- 1x GPRS/GSM (based on SIM800L)
- 1x USB port (type B).
- 1x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- 1x RS-232 port.
- 1x HALF/FULL Duplex RS-485 port.
- Modbus RTU
- Industrial Protocols
Other Information
- Dimensions:100x45x115mm
- DIN Rail mounting.
- Max consum.: 1.2A
- Flash Memory: 32kB (4kB for bootloader)
- SRAM: 2,5kB
- EEPROM: 1kB
- Clock Speed: 16MHz
*Read the manual to set the signal type.
