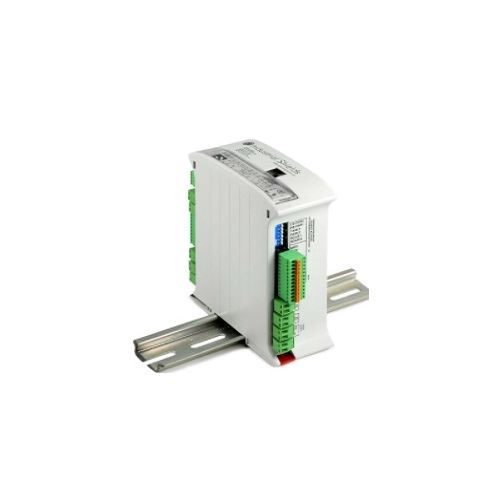

PLC ARDUINO ARDBOX 20 I/Os ANALOG

Arduino-based modular PLC

This is the first equipment based on the Arduino technology designed for a professional use. This PLC has 21I/Os. It also contains several communication ports which provide more flexibility and control. The M-DUINO family offers the possibility to expand up to 127 modules through I2C, which means that you can have until 7100 Inputs / Outputs in Master-Slave connections, additionally to sensors, etc…

Programming Software
This PLC can be programmed using the Arduino IDE platform.

Instantaneous connection and coding
The PLC M-DUINO is programmed through the USB ports. This PLC can also be programed through Ethernet port remotely. This offers and immediate access to program, mantain and control. Also you can continuously monitor the status for all the variables, inputs, outputs, etc.  It is compatible with the Arbosx and the Touchberry Pi with instantaneous connection.

Inputs (Arduino Mega included) ▼

• 10 Inputs:
• 10x Digital Optoisolated Inputs (7-24Vdc) 6 of which can work as Analog Input (0-10Vdc).

Outputs (Arduino Mega included) ▼

•  10 Outputs
• 10x Digital Outputs (5-24Vdc) 7 of which can work as Analog output (0-10Vdc).

Communications ▼

• 1x WiFi & Bluetooth LE (based on ESP32)
•  1x USB port (Micro USB-B).
• 1x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
• 1x RS-232 port.
• 1x HALF/FULL Duplex RS-485 port.
• Modbus RTU
• Industrial Protocols

Other information ▼

• PLC measures (cm): 100x45x115
• DIN Rail mounting
• Max. consum.: 1.2A
• Flash Memory: 256kB (8kB for bootloader)
• SRAM: 2.5kB
• EEPROM: 1kB
• Clock Speed: 16MHz
• For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
