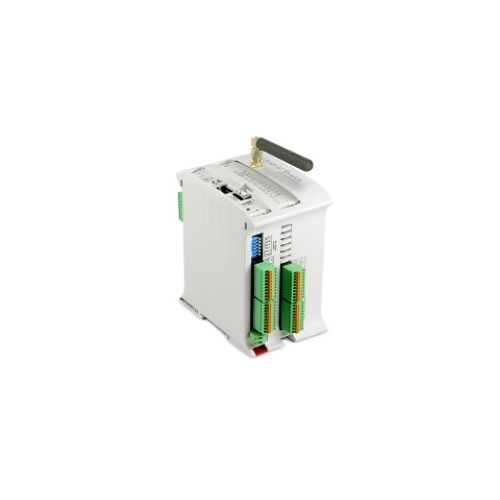

015001000200 | M-DUINO PLC ARDUINO 21 I/0s ETH & LoRa
M-DUINO PLC ARDUINO ETHERNET & LoRa (868 - 915MHz) 21 I/Os, ANALOG/DIGITAL/RELAY PLUS
| Complete Electronics Part No. | 015001000200 |
|---|---|
| Manufacturers Part No. | 015001000200 |
| Number of I/O's | 21 |
Description
M-DUINO PLC Arduino, Ethernet & LoRa
- Ethernet & LoRa (868 - 915MHz), 21 I/Os
- Analog/Digital/Relay PLUS
- 12 Inputs: 6x Analog (0-10Vdc) configurable by software, 6x Digital Isolated (5-24Vdc) (x1 can work as Interrupt option
- 8 Outputs: 3x Analog (0-10Vdc), 5x Digital Isolated (5-24Vdc).
- Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection)
- Flash Memory: 256KB of which 8KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- Arduino Board: Arduino Mega 2560
- Clock Speed 16MHz
Communication:
- Ethernet communication - 1
- Wi-Fi & BLE (Bluetooth Low Energy) - NO
- GPRS/GSM - NO
- USB port (type B) communication (for uploading or debugging only) - 1
- Micro USB port (type B) communication (for uploading or debugging only) - 0
- I2C communication (interface with other Industrial Shields, sensors, I/Os modules) - 1
- Serial TTL (UART) communication - 1
- RS-232 communication - 1
- Half/Full Duplex RS-485 communication - 1
- SPI external port communication (using MOSI, MISO, SS pins of Arduino) - 1
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification) - YES
- µSD Socket (using SPI port, chip select D53 pin) - YES
Other technical specifications
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
- µSD Socket (using SPI port, chip select D53 pin).
- 100x75x115mm
- DIN Rail mounting.
- Max consum.: 1.2A
- Flash Memory: 256kB (8kB for bootloader)
- SRAM: 8kB
- EEPROM: 4kB
- Clock Speed: 16MHz
*Rx,Tx pins are not available using RS485. For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
