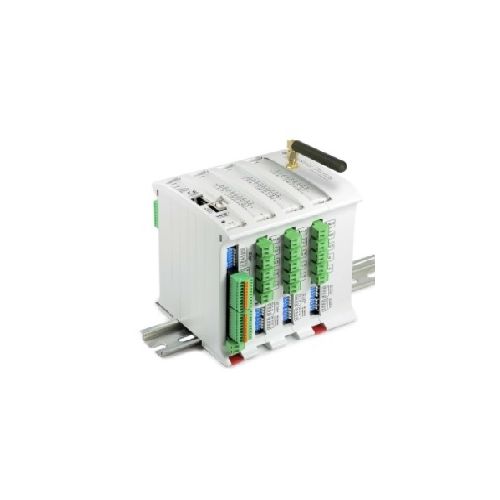

015001000900 | M-DUINO PLC ARDUINO 50RRA I/0s ETH & LoRa
M-DUINO PLC ARDUINO ETHERNET & LoRa (868 - 915MHz) 50RRA I/Os, ANALOG/DIGITAL/RELAY PLUS
| Complete Electronics Part No. | 015001000900 |
|---|---|
| Manufacturers Part No. | 015001000900 |
| Number of I/O's | 50RRA |
Description
M-DUINO PLC Arduino, LoRa / ETHERNET
- Ethernet & LoRa (868 - 915MHz), 50RRA I/Os
- Analog/Digital/Relay PLUS
- 19 Inputs 12x Analog (0-10Vdc) / Digital (5-24Vdc) configurable by software, 9x Digital Isolated (5-24Vdc) (5 of which can work as Interrupt).
- 26 Outputs 6x Analog (0-10 Vdc) / Digital (5-24 Vdc) configurable by switch. 4x Digital Isolated (5-24Vdc) 16x Relay Output (220Vac - 5A).
- Input Voltage: 12 to 24Vdc (Fuse protection (2.5A) Polarity protection
- Flash Memory: 256KB of which 8KB used by bootloader
- SRAM: 8 KB
- EEPROM: 4 KB
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification)
- µSD Socket (using SPI port, chip select D53 pin).
- Arduino Board: Arduino Mega 2560
- Dimensions: 100x75x115mm
*Rx,Tx pins are not available using RS485. For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
Communication:
- RTC, µSD, Ethernet, LoRa, USB, Full/Half Duplex RS485, RS232, I2C, Modbus
-
1x Ethernet port.
- 1x LoRa. 2 different selectable options: 868MHZ to Europe and 915MHz to America
- 1x USB port (type B).
- 1x I2C port. (Interface with other Industrial Shields, sensors, I/Os modules)
- 3x TTL ports.
- 1x RS-232 port.
- 1x HALF/FULL Duplex RS-485 port.
- 1x SPI external port (Using MOSI,MISO, SS pins of Arduino)
- TCP IP / Modbus TCP. / Modbus RTU
- WebServer capacity
- Industrial Protocols
