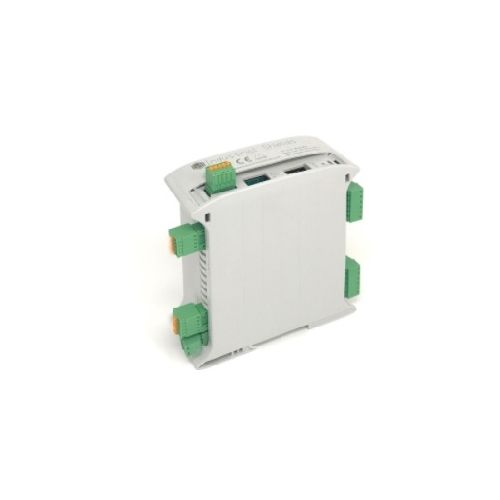

10 I/O's Digital Module - CPU ESP32 | 013002000100
10 I/O's Digital Module - CPU ESP32 Outputs: 5-24 Vdc 0.3A , Ethernet Port, WiFi 2.4-2.5 Ghz Half Duplex RS-485 communication, Micro USB port (type B)
| Complete Electronics Part No. | 013002000100 |
|---|---|
| Manufacturers Part No. | 013002000100 |
| Number of I/O's | 10 |
Description
10 I/O's Relay Module
Arduino-based PLC
It has 10 digital inputs / outputs. 10x digital optoisolated inputs (see specifications), and 10x relay outputs (see especifications) configurable by jumpers.
This basic Controllers family offers the possibility of communication between two industrial PLCs using RS485 or Ethernet obtaining a master-slave connection.
Instant connection and programming
The Basic Controllers family, as it uses an Arduino NANO, lets you program it through the USB. This feature lets immediate access in order to program, maintain and prepare it for its set up. It lets you control your equipment with no limits.
Standardized modules
The different Basic Controllers devices are programmed exactly in the same way. Once you have used one of them, the rest can be configured using the same methodology.
Expandable
Using the RS485 connection, that all the Basic Controllers family has, you can connect up to 32 modules, which means that you can have up to 640 Input / Outputs in Master-Slave connection. NOTE: for RS485 you need to tell us that requirement.
Inputs ▼
- Digital Optoisolated Inputs: 10
- *NOTE: Configurable by jumpers
- The maximum number of I/Os that can be used at the same time is 10.
Outputs ▼
- Relay Outputs
- *NOTE: Configurable by jumpers
- The maximum number of I/Os that can be used at the same time is 10.
Communications ▼
- Ethernet communication - 1
- Micro USB port (type B) communication (for uploading or debugging only) - 1
- Half Duplex RS-485 communication - 1
- WiFi 802.11 b/g/n (802.11n up to 150 Mbps) - 1 & Bluetooth/BLE - 1
- TCP IP
The Open Source Board CPU ▼
- Single Board Computer (SBC) Microcontroller
- ESP32-WROOM-32D
- Flash Memory (MB): 4
- SRAM (KB): 520
- ROM (KB): For booting and core functions 448
- External Clock Speed (MHz): 240
- Internal Clock Speed (MHz): 8
Other information ▼
- PLC measures (cm): 101x45x114
- DIN Rail mounting
- Max. consum.: 1.2A
- Power Supply Voltage (Vdc) Range: 12-24
- Power Consumption (VAC max.): 30
- Operating Temperture C: 0C-60C
- Operating Relative Humidity % (no condensation): 10%-90%
- Package Size: 13cm x 14cm x 8cm
- Packaging: Box
- ECCN Number: EAR99H
- HTS Code: 8537.10.10.90
- 740.17 Language - 740.17 (b)(1) for self-classification or (b)(3) CCATS issued: §740.17 (b)(1)
- Country of Origin: Spain
- STATIC Sensitive: NO
- Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
- Lead Free
- RoHS Compliant by Exemption? NO
- Does Part Contain Lithium? NO
- Product Weight: 321g max
Certification & Safety ▼
- Conformity with Health, Safety, and Environmental Protection (CE)
- EN61010-1 | EN61010-2-201 | EN61131-2:2007(Clause 8: Zone A/B EMC and clause 11:LVD) | EN61000-6-4:2007 + A1 2011 (Emissions) | EN 61000-6-2:2005 (Immunity)
- Medical Devices Directive (CE): 93/42/EEC
- FCC Federal Code of Regulation (CFR) for Electronic Equipment: EMC: FCC Part 15
- RoHS: Directive 2002/95/EC | Restriction of Hazardous Substances (EEE)
- UL: STD 61010-2-201 and UL STD 61010-1 | Certified to CSA Std. C22.2 No. 61010-1 | Certified to CSA Std. C22.2 No.61010-2-201 | 5016476
- NCAGE (Commercial and Government Entity Code - Department of Defense): NCAGE 99SGB |Commercial and Government Entity Code | Boot&Work Corp SL Industrial Shields
