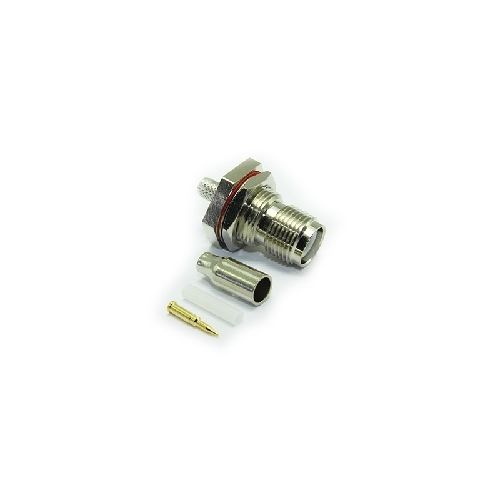

14-256-A3-AD | 14264A3AD | TNC Reverse Polarity Crimp Jack
TNC 50 ohm reverse polarity, straight full crimp jack (4 Part). Contact and crimp sleeve are annealed, Suitable for RG174 or similar cables in group AD.
| Complete Electronics Part No. | 14264A3AD |
|---|---|
| Manufacturers Part No. | 14-256-A3-AD |
| Type | Reverse Polarity |
| Impedance | 50 Ohm |
| Working Frequency | Up To 11 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 11GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- Design Standard: IEC 60169-17
- RoHS3 Compliant
- Centre Contact Termination: Crimp
- Outer Contact Termination: Crimp
- Mating Cycles: 500
- Contact Retention: 10N min
- Cable Retention: 100N min
- Weight: 19.78g
- Mating Force: 13.6N max
- Un-Coupling Force: 13.6N max
- Operating Temperature: -30 to +70°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: Delrin
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
