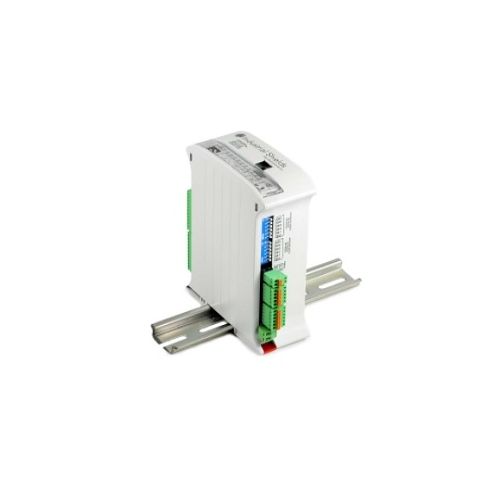

PLC Arduino Ardbox & DALI 20 E/S Analog HF Modbus

Arduino-based PLC

It has 20 digital inputs / outputs. 10x analog or digital inputs (see specifications), and 10x digital or analog output (see specifications).

Basic Controller's family offers the possibility of communication between two computers using I2C, obtaining a master-slave connection.

Instant connection and programming
The Basic Controllers family, as it uses an Arduino LEONARDO, lets you program it through the USB. This feature lets immediate access in order to program, maintain and prepare it for its set up. It lets you control your equipment without no limits.

Standardized modules
The different Basic Controllers devices are programmed exactly on the same way. Once you have used one of them, the rest can be configured using the same methodology.

Expandable
Using the I2C connection, that all the Basic Controller's family have, you can connect up to 127 modules, which it means that you can have up to 2.540 Input / Outputs in Master Slave connection. NOTE: for I2C, you need to tell us that requirement.

Flexible and dynamic
All the components are configurable, both configure like make your jobs as Master or Slave when used on Master-Slave connection through I2C

Inputs (x10) ▼

• An/Dig Input 10bit (0-10Vcc) - (x8)
• 0 to 10Vac
• Input Impedance: 39K
• Separated PCB ground
• Rated Voltage: 10Vac 7 to 24Vdc
• min: 2 to 12 mA
• Galvanic Isolation Rated Voltage: 24 Vdc
• Digital Input (24Vdc) - (x1)
• Interrupt Input HS (24Vcc) * - (x1) * The Interrupt isolated Inputs can also work as Digital isolated Inputs

Outputs (x10) ▼

• Analog Output 8bit (0-10Vcc) - (x7)
• 0 to 10Vac I max: 20 mA Separated PCB ground Rated Voltage: 10Vac
• Digital Isolated Output (24Vcc) - (x10)
• 5 to 24Vdc I max: 70 mA Galvanic Isolation Diode Protected for Relay Rated Voltage: 24Vdc
• PWM Isolated Output 8bit (24Vcc) - (x7)
• 5 to 24Vdc I max: 70 mA Galvanic Isolation Diode Protected for Relay Rated Voltage: 24Vdc

Communications ▼

• I2C
• USB (Only for uploading or debugging)
• RS485
• RS232
• SPI
• (2x) Rx, Tx (Arduino pins) Max232-Max485-W5500

The Open Source Board CPU ▼

• Flash Memory (KB): 32 of which 4KB used by bootloader
• SRAM (KB): 25
• EEPROM: 1KB
• Clock Speed (MHz): 16

Other information ▼

• PLC measures (cm): 101x45x115
• DIN Rail mounting
• Max. consum.: 1.5A
• Power Supply Voltage (Vdc) Range: 12-24 (Fuse protection (2.5A) Polarity protection)
• Power Consumption: 30 W Max
• Operating Temperture C: 0C-60C
• Operating Relative Humidity % (no condensation): 10%-90%
• Country of Origin: Spain
• Product Weight:  350g max

Performance Specification▼

• Arduino Board: Arduino Leonardo
• Control Method: Stored program method
• I/O Control method: Combination of the cyclic scan and immediate refresh processing methods.
• Microcontroller: ATmega32U4
