Flexible Pyramid Cable Grommets, multi range
Flexible pyramid shaped cable grommet
- With multi-range for various cable diameters
- Enhanced strain relief possible via cable ties
- Due to the larger terminal area of a wide range of cable diameters, a clamping range of 3 to 26 mm can be covered with only 3 different grommets
- Ideal for wiring non pre-terminated cables locally
- The KT-DPF grommets are not split and therefore only usable for cables without connectors
- Cutting of KT-DPF grommets: Cable diameter less 20%.
-

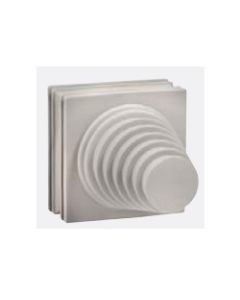

41260 | KT - DPF - A Grey | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 3 - 12mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20% -
41261 | KT - DPF - B Grey | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 4 - 18mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20%
-
41262 | KT - DPF - C Grey | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 14 - 26mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20%
-
41360 | KT - DPF - A Black | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 3 - 12mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20% -
41361 | KT - DPF - B Black | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 4 - 18mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20% -

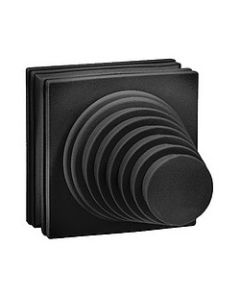

41362 | KT - DPF - C Black | icotek GrommetsMulti Rangeable Grommet, Clamping Range: 14 - 26mm, For Cable without Connectors, Cutting Dimensions: Cable Diameter less 20%
