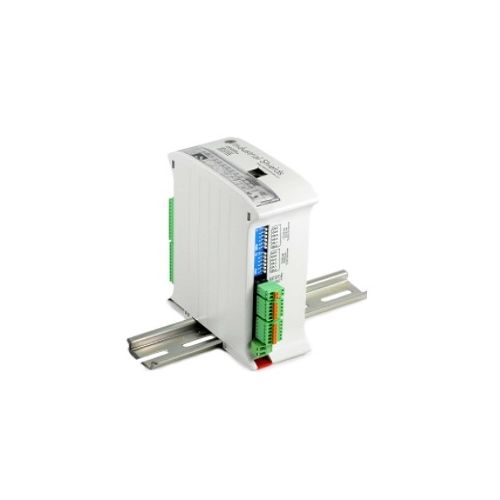

ISAB20ANHF | Arduino PLC 20 I/Os Analog | IS.AB20AN.HF+
PLC Arduino ARDBOX 20 I/Os Analog HF Modbus, Total Inputs: 10, Total Outputs: 10
| Complete Electronics Part No. | ISAB20ANHF |
|---|---|
| Manufacturers Part No. | IS.AB20AN.HF+ |
Description
Arduino ARDBOX PLC 20 I/Os RELAY
Arduino-based PLC.
It has 20 digital inputs / outputs. ARDBOX PLC product family offers the possibility of communication between two computers using I2C, obtaining a master-slave connection.
Instant connection and programming.
The Basic Controllers family, as it uses an Arduino LEONARDO, lets you program it through the USB. This feature lets it immediate access in order to program, maintain and prepare it for its set up. It lets you control your equipment without no limits.
Standardized modules.
The different ARDBOX PLC family devices are programmed exactly on the same way. Once you have used one of them, the rest can be configured using the same methodology.
Expandable
Using the I2C connection, which all the Basic Controllers family have, you can connect up to 127 modules, this means that you can have up to 2.540 Input / Outputs in Master Slave connection. NOTE: for I2C, you need to ask for us that requirement.
Flexible and dynamic
All the components are configurable both configure, like make your jobs as Master or Slave when used on Master-Slave connection through I2C.
Inputs ▼
- Total Inputs: 10
- Total Digital Optoisolated Inputs (5-24Vdc): 2
- Digital Optoisolated Inputs (5-24Vdc): 0
- Digital Optoisolated Inputs (5-24Vdc) | can work like interrupt Inputs INT (5-24Vdc): 2
- 10 bit Analog Inputs (0-10V) | Digital (5-24Vdc) Inputs configurable by software: 8
Outputs ▼
- Total Outputs: 10
- Digital Optoisolated Outputs (5-24Vdc): 2
- Digital Optoisolated and PWM (5-24Vdc) | 8 bit Analog (0-10V) Outputs configurable by switch: 8
- Relay Outputs (220Vac - 5A): 0
Communications ▼
- Ethernet communication - NO
- Wi-Fi & BLE (Bluetooth Low Energy) - NO
- GPRS/GSM - NO
- USB port (type B) communication (for uploading or debugging only) - 0
- Micro USB port (type B) communication (for uploading or debugging only) - 1
- I2C communication (interface with other Industrial Shields, sensors, I/Os modules) - 1
- Serial TTL (UART) communication - 0
- RS-232 communication - 1
- Half/Full Duplex RS-485 communication - 1
- SPI external port communication (using MOSI, MISO, SS pins of Arduino) - 1
- RTC (Real Time Clock. NOTE: I2C port used. See pinout modification) - NO
- µSD Socket (using SPI port, chip select D53 pin) - NO
- Communications notes - * When using I2C, 2 inputs are lost
The Open Source Board CPU ▼
- Single Board Computer (SBC) Microcontroller
- Arduino Leonardo Original Board (ATmega32u4)
- Flash Memory (KB): 32
- Flash Memory of which used by bootloader (KB): 4
- SRAM (KB): 2.5
- EEPROM (KB): 1
- Clock Speed (MHz): 16
Certification & Safety ▼
- Conformity with Health, Safety, and Environmental Protection (CE)
- EN61010-1 | EN61010-2-201 | EN61131-2:2007(Clause 8: Zone A/B EMC and clause 11:LVD) | EN61000-6-4:2007 + A1 2011 (Emissions) | EN 61000-6-2:2005 (Immunity)
- Medical Devices Directive (CE): 93/42/EEC
- FCC Federal Code of Regulation (CFR) for Electronic Equipment: EMC: FCC Part 15
- RoHS: Directive 2002/95/EC | Restriction of Hazardous Substances (EEE)
- UL: STD 61010-2-201 and UL STD 61010-1 | expecting final auditory (tested)
- NCAGE (Commercial and Government Entity Code - Department of Defense): NCAGE 99SGB |Commercial and Government Entity Code | Boot&Work Corp SL Industrial Shields
Other information ▼
- PLC measures (cm): 100x75x115
- DIN Rail mounting
- Max. consum.: 1.5A
- Power Supply Voltage (Vdc) Range: 12-24
- Power Consumption (VAC max.): 30
- Operating Temperture : 0C-60C
- Operating Relative Humidity % (no condensation): 10%-90%
- Package Size: 13cm x 14cm x 8cm
- ECCN Number: EAR99H
- HTS Code: 8537.10.10.90
- 740.17 Language - 740.17 (b)(1) for self-classification or (b)(3) CCATS issued: §740.17 (b)(1)
- Country of Origin: Spain
- STATIC Sensitive: N
- Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
- Lead Free
- RoHS Compliant by Exemption? NO
- Does Part Contain Lithium? N
- Product Weight: 321 gram
Other Technical Specifications: *Rx,Tx pins are not available using RS485. For SPI you need to choose another pin for Select Function (You can choose, SDA, SCL, Rx, Tx, Pins of Arduino)
