Arcolectric Fuseholders
Arcolectric/ Bulgin offer Fuseholders for 5x20mm, 6.3x32mm Fuses with a range of release options including, Finger grip or Screwdriver release.
Key features:
- Hand release/Screwdriver release
- PC1, PC2, PC3 Protection Category
- Solder, 2.8mm,4.8mm, 6.3mm Terminals
- Roased or low profile bezels
- Snap-in or threaded bushing mounting
- Snap fit or screw to panel fixing
Protection Category
Category PC1:
- No integral protection against electric shock. If required, Designers/Manufacturers must provide additional protection against electric shock on equipment. FX0296, FX0345-FX0365 FX0321, FX0267, FX0326-FX0331, FX0327, FX0280, FX0285, FX0360
Category PC2:
- With integral protection against electric shock. Fuseholders shall have live parts inaccessible to IEC 60529 Standard Test Finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn. FX0357, FX0359, FX0367, FX0369, FX0454, FX0455, FX0458, FX0415, FX0416, FX0354, FX0462, FX0463, FX0456, FX0457, A003500, 0345, 0347 FX0419
Category PC3:
- With integral protection against electric shock. Fuseholders shall have live parts inaccessible to IEC 60529 1mm dia. rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse, is being inserted or withdrawn. FX0430, FX0460, FX0461, FX0330, FX0342
-
-

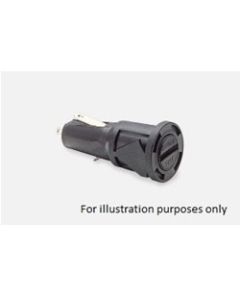

B0340RAAAB | Arcolectric | Fuse HolderFuseholder, Fuse Size: 5 x 20mm, Panel Mount, Rated Voltage: 250V ac, Rated Current: 6.3A -

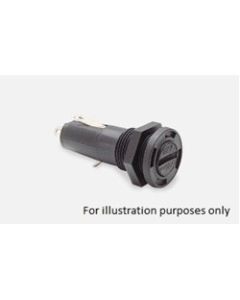

B0341RDAAA | Arcolectric | Fuse HolderFuseholder, Fuse Size: 5 x 20mm, Panel Mount, Rated Voltage: 250V ac, Rated Current: 6.3A -
C0345RAAAA | Arcolectric | Fuse HolderPanel Mount Fuseholder, Fuse Size: 6.3mm x 32mm, Low profile bezel, Voltage Rating: 250V, Current Rating: 16A -
C0345RAAAB | Arcolectric | Fuse HolderPanel Mount Fuseholder, Fuse Size: 6.3mm x 32mm, Low profile bezel, Voltage Rating: 250V, Current Rating: 16A -
C0345RAAAC | Arcolectric | Fuse HolderPanel Mount Fuseholder, Fuse Size: 6.3mm x 32mm, Low profile bezel, Voltage Rating: 250V, Current Rating: 16A -

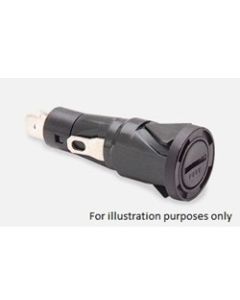

D0345RAAAE | Arcolectric | FuseholderPanel Mount Fuseholder, Snap Fixing, Fuse Size: 6 x 30mm, Rated Voltage: 250Vac, Rated Current 16A(max), Termination: Right Angled 6.3mm Tab -
D0345RDAAB | Arcolectric | Panel Mount FuseholderPanel Mount Fuseholder, Snap Fixing, Fuse Size: 6 x 30mm, Rated Voltage: 250Vac, Rated Current 16A(max), Termination: Right Angled 6.3mm Tab -
T0340RAAAB | Arcolectric | FuseholderPanel Mounted Fuseholder, Rated Voltage: 250V, Rated Current: 6.3A, Fuse Size 5mm x 20mm, Termination: Solder Tab -
T0340RDAAD | Arcolectric | FuseholderPanel Mounted Fuseholder, Rated Voltage: 250V, Rated Current: 6.3A, Fuse Size 5mm x 20mm, Termination: Solder Tab -

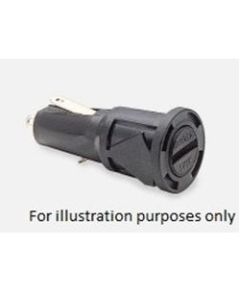

T0340RDAAF | Arcolectric | FuseholderPanel Mounted Fuseholder, Rated Voltage: 250V, Rated Current: 6.3A, Fuse Size 5mm x 20mm, Termination: Solder Tab -
T0345RAAAA | Arcolectric | FuseholderPanel Mounted Fuseholder, Rated Voltage: 250V, Rated Current: 6.3A, Fuse Size 6.3mm x 32mm, Termination: Solder Tab
