Bulgin Fuse Holders
Fuse Holders
Bulgin’s extensive range of fuse holders are designed to give the high degree of protection demanded in today’s sophisticated electronic equipment. Carrying world-wide safety approvals from UL, VDE, CSA and IMQ, all types are manufactured from high-grade flame retardant nylon and polyester materials.
Available in a variety of mounting options including panel mount (screw or snap-fit), PCB & base mount, these compact and shock safe fuse holders are ideal solutions for 5 x 20mm, 6.3 x 25mm and 6.3 x 32mm fuses.
Fuse carrier styles include a captive drawer, screw cap - with screwdriver release, bayonet cap - with screwdriver release and screw cap - with finger release.
Series FX0462 - FX0463 panel mount fuseholders have IP68 ingress protection
Series FX0345 - FX0365 panel mount fuseholders have IP66 ingress protection
Protection Category
-
Category PC1:
No integral protection against electric shock. If required, Designers/Manufacturers must provide additional protection against electric shock on equipment.

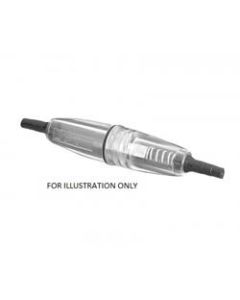

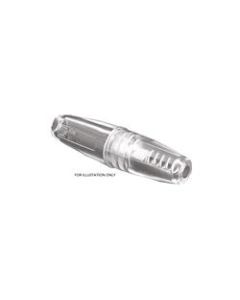

FX0296, FX0345-FX0365 FX0321, FX0267, FX0326-FX0331, FX0327, FX0280, FX0285, FX0360
-
Category PC2:
With integral protection against electric shock. Fuseholders shall have live parts inaccessible to IEC 60529 Standard Test Finger, when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse is being inserted or withdrawn.
FX0357, FX0359, FX0367, FX0369, FX0454, FX0455, FX0458, FX0415, FX0416, FX0354, FX0462, FX0463, FX0456, FX0457, A003500, 0345, 0347 FX0419
-
Category PC3:
With integral protection against electric shock. Fuseholders shall have live parts inaccessible to IEC 60529 1mm dia. rigid test wire when fully assembled, without fuse carrier or fuse in place and when fuse carrier, with fuse, is being inserted or withdrawn.
FX0430, FX0460, FX0461, FX0330, FX0342
