EMC Shield Clamps and Brackets
- Provides solutions for EMC / EMI cable earthing applications
- These shield clamps are made for reliable and effective earthing of high-frequency interferences and allow safe operation of machinery and equipment
- Shock and vibration resistant
- Maintenance free
- Designed for high density applications
- Material: Spring steel, zinc plated
- Large contact area
- Easy assembly
- Can be easily attached via a rivet.
-
36200 | SKL 1,5-3,0 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 1.5 to 3mm, Dimensions (LxBxH: 8 x 11.8 x 13mm -
36202 | SKL 3-6 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 3 to 6mm, Dimensions (LxBxH: 8 x 11.8 x 13.6mm
-
36204 | SKL 6-8 standard type | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 6 to 8mm, Dimensions (LxBxH: 8 x 11.8 x 15mm
-
36205 | SKL 8-11 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 8 to 11mm, Dimensions (LxBxH: 8 x 14 x 20mm
-
36206 | SKL 12-16 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 11 to 17mm, Dimensions (LxBxH: 8 x 21 x 27.5mm
-
36207 | SKL 17-22 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 17 to 22mm, Dimensions (LxBxH: 8 x 26.5 x 34.5mm
-
36208 | SKL 22-30 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 22 to 30mm, Dimensions (LxBxH: 8 x 35 x 39.5mm
-
36209 | SKL 30-38 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 30 to 38mm, Dimensions (LxBxH: 11 x 48.3 x 54.7mm
-
36213 | SKL 38-48 | Shield ClampSKL Shield Clamps, For Earthing Single Cable Shields, Clamping Range: 38 to 48mm, Dimensions (LxBxH: 13 x 55 x 67mm
-

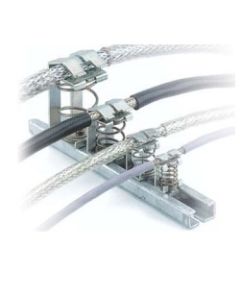

36222 | SKZ 3 8 | EMC Shield BracketSKZ Shield Brackets, For Direct Mounting (M4 Screw included), Shield Diameter: 3 to 8mm, Dimensions (LxWxH): 30.5x12.8x31.8mm -
36224 | SKZ 4-13,5 | EMC Shield BracketSKZ Shield Brackets, For Direct Mounting (M4 Screw included), Shield Diameter: 4 to 13.5mm, Dimensions (LxWxH): 36x22x37.8mm
-
36226 | SK 10-20 | EMC Shield BracketSK Shield Brackets, For Direct Mounting (M4 Screw included), Shield Diameter: 10 to 20mm, Dimensions (LxWxH): 27x25x41mm
