RS30 Series Managed Switches
Hirschmann’s years as a networking leader, the use of premium electronic components combined with fan-less thermal management translates to superior performance and the highest MTBF (mean time between failure) values possible.
Comprehensive security features offers all round protection in mission critical networks.
RS30 devices are designed for the harsh requirements of industrial automation. They meet the relevant industry standards, providing very high operational reliability under extreme conditions with long-term reliability. The devices operate with fan-less cooling and have a redundant power supply. The switches can be quickly mounted by snapping them onto a hat rail
The RS30 allows you to construct switched industrial ETHERNET networks that conform to the IEEE 802.3 and 802.3u standards using copper wires or optical fibres in a bus or ring topology.
You can connect terminal devices and other infrastructure components via twisted pair cables, multi-mode LWL and single-mode LWL.
The twisted pair ports support:
- Autocrossing
- Autonegotiation
- Autopolarity
The RS30 variants are rail switches with 8, 16 or 24 10/100 Mbit Ethernet ports. You can choose the media for ports 1 and 2. The other 6, 14 or 22 ports are 10/100 Mbit Ethernet ports with twisted pair connections via RJ45 connectors. With Fast Ethernet Uplink Ports, the switch can be configured as all copper, or with one or 2 Fibre Ports. The Fibre Ports are available in multi-mode and or single-mode.
Fibre Types:
- Multimode fibre (MM) 50/125 µm
- Multimode fibre (MM) 62.5/125 µm
- Single mode fibre (SM) 9/125 µm
- Single mode fibre (LH) 9/125 µm (long haul transceiver)
Uplink ports (x2) type can be Twisted pair, SFP Slot GE or SFP slot GE/FE
There are a variety of temperature ranges available:
- Standard 0 °C to 60 °C
- Extended -40 °C to +70 °C without conformal coating
- Extended -40 °C to +70 °C with conformal coating.
The supply voltage and the signal contacts are connected via a 6-pin terminal block with snap locking.
The USB socket is for connection of Auto Configuration Adapter ACA 21-USB which is an adapter for saving and loading the device configuration this can also be used for loading the device software.
Products are broken down into the following sections, please select the section you wish to start with.
-

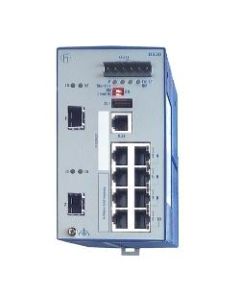

RS30-0802O6O6SDAEHH | 943434031 | Industrial ethernetGigabit / Fast Ethernet switch, 8 x standard 10/100BASE TX, RJ45, 2 x Gigabit Ethernet uplink ports, Software Layer 2 Enhanced -

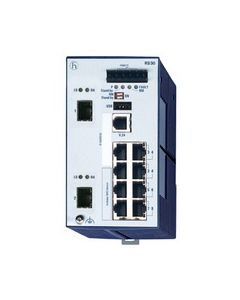

RS30-0802O6O6SDAPHH08.0. | 943434032 | Industrial Ethernet10 port Gigabit/Fast-Ethernet-Switch 2 x Gigabit Ethernet (Uplink), 8 x Fast Ethernet 10/100 BASE TX, RJ45, Software Layer 2 Professional -

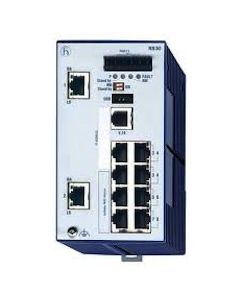

RS30-0802T1T1SDAEHHXX.X. | 943434029 | Industrial EthernetManaged 10 port Gigabit/Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45, 2.x uplink: 10/100/1000BASE-TX, RJ45, Software Layer 2 Enhanced -
RS30-0802T1T1SDAPHHXX.X. | 943434030 | Industrial EthernetManaged 10 port Gigabit/Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45,2.x uplink: 10/100/1000BASE-TX, RJ45, Software Layer 2 Professional -

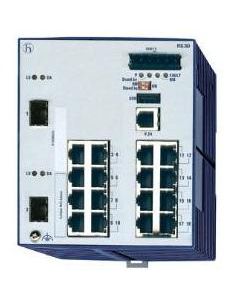

RS30-1602O6O6SDAEHH | 943434035 | Industrial Ethernet18 Port Managed Gigabit/Fast Ethernet, 16 x standard 10/100 BASE TX, RJ45, 2 x Uplink: Gigabit SFP-Slot; Software Layer 2 Enhanced -

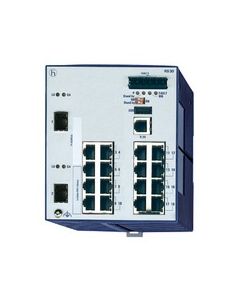

RS30-1602O6O6SDAPHH08.0. | 943434036 | Industrial EthernetCompact OpenRail Gigabit / Fast Ethernet Switch 18 ports, 16 x standard 10/100 BASE TX, RJ45, 2 Gigabit / Fast Ethernet Uplink SFP ports -

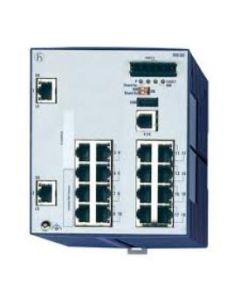

RS30-1602T1T1SDAEHHXX.X. | 943434033 | Industrial EthernetManaged 18 port Gigabit/Fast-Ethernet-Switch, 2.x uplink: 10/100/1000BASE-TX, RJ45, 16 x standard 10/100 BASE TX, RJ45, Software Layer 2 Enhanced -
RS30-1602T1T1SDAPHHXX.X. | 943434034 | Industrial EthernetManaged 18 port Gigabit/Fast-Ethernet-Switch, 2.x uplink: 10/100/1000BASE-TX, RJ45, 16 x standard 10/100 BASE TX, RJ45, Software Layer 2 Professional -

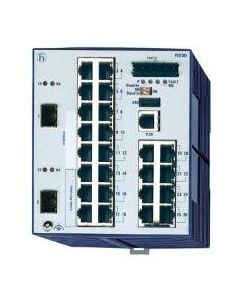

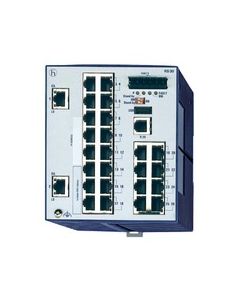

RS30-2402O6O6SDAEHH | 943434039 | Industrial Ethernet24 port managed Gigabit/Fast Ethernet-switch, 2 x Gigabit SFP Uplink ports, 24 standard 10/100 BASE TX, RJ45, Software Layer 2 Enhanced -
RS30-2402O6O6SDAPHH | 943434040 | Industrial Ethernet26 port managed Gigabit/Fast-Ethernet-Switch, 2 x Gigabit SFP Uplink ports, 24 x standard 10/100 BASE TX, RJ45, Software Layer 2 Professional -

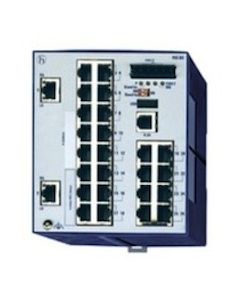

RS30-2402T1T1SDAEHHXX.X. | 943434037 | Industrial EthernetManaged 26 port Gigabit/Fast-Ethernet-Switch, 2 x uplink: 10/100/1000BASE-TX, RJ45, 24 x standard 10/100 BASE TX, RJ45, Software Layer 2 Enhanced -
RS30-2402T1T1SDAPHHXX.X. | 943434038 | Industrial EthernetManaged 26 port Gigabit/Fast-Ethernet-Switch, 2 x uplink: 10/100/1000BASE-TX, RJ45, 24 x standard 10/100 BASE TX, RJ45, Software Layer 2 Professional
