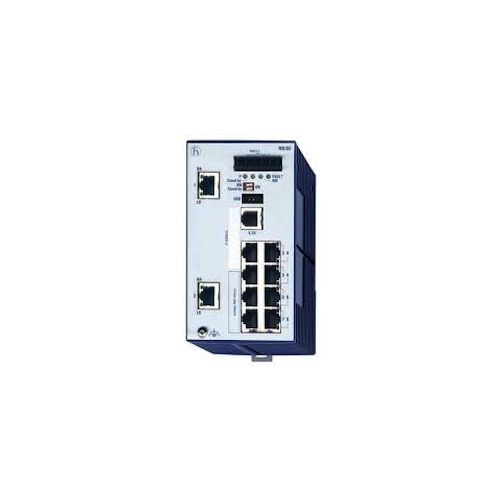

RS30-0802T1T1SDAPHHXX.X. | 943434030 | Industrial Ethernet
Managed 10 port Gigabit/Fast-Ethernet-Switch, 8 x standard 10/100 BASE TX, RJ45,2.x uplink: 10/100/1000BASE-TX, RJ45, Software Layer 2 Professional
| Complete Electronics Part No. | 943434030 |
|---|---|
| Manufacturers Part No. | 943 434-030 |
| Ethernet Product Type: | Managed Switch |
| Total 10/100 (RJ45) Ports: | 8 |
| Total 10/100/1000 (RJ45) Ports: | 2 |
| Total Ethernet Ports: | 10 |
| Operating Voltage: | 12/24/48 V DC & 24V AC |
| Mounting: | DIN Rail |
| IP Rating: | IP20 |
Description
RS30-0802T1T1SDAPHH08.0.
10 port Gigabit/Fast-Ethernet-Switch
- 2 x Gigabit Ethernet
- 8 x Fast Ethernet
- Managed
- Software Layer 2 Professional
- For DIN rail
- Store-and-forward-switching
- Fanless design
- 2 Gigabit Ethernet ports
- 1. uplink: 10/100/1000BASE-TX, RJ45
- 2. uplink: 10/100/1000BASE-TX, RJ45
- 8 x standard 10/100 BASE TX, RJ45
- Operating voltage 12/24/48 V DC (9,6-60) V and 24 V AC (18-30) V (redundant)
- Current consumption at 24 V DC 346 mA
- Operating temperature 0 ºC ... 60 ºC
- Dimensions (W x H x D) 74 mm x 131 mm x 111 mm
- Protection class IP20
***Product Discontinuation Notice***
Last Order Date: Dec 31st 2023
Last Delivery Date: June 30th 2024
Last Service Date: June 30th 2029
