Lumberg offer connectivity solutions for photovoltaic power systems with their System LC4 which can be found in some of the world’s largest solar power plants. The LC4 system includes module junction boxes, connectors, cables and array harnesses.
Hirschmann CA series of connectors are also used in solar applications.
Phoenix Contact - from connection technology for photovoltaic panels to DC connectors for field cabling and device connection for signals, data, and power. The tailored, high-quality components contribute to the long-term and increased availability of your system.
- Connectors
- Controllers
- Electronics housings
- Electronic switchgear
Products are broken down into the following sections, please select the section you wish to start with.
-

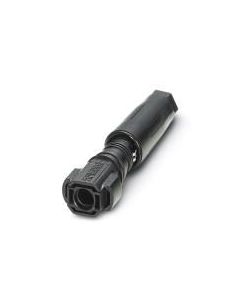

1020775 | PV-C1M-S 2,5-6 (-) 1 | Photovoltaic connectorPV Connector (-) Nominal current: 40 A, nom. voltage: 1500 V, connection method: Spring-cage, colour: black -
1020776 | PV-C4F-S 2,5-6 (+) | Photovoltaic connectorPV Connector (+) Nominal current: 40 A, nom. voltage: 1500 V, connection method: Spring-cage, colour: black -
1204517 | SZF 1-0,6X3,5 | Photovoltaic connectorActuation Tool for ST terminal blocks, also suitable for use as a bladed screwdriver -
1212511 | WIREFOX-D SR 6-1 | Photovoltaic connectorStripping tool, for standard 2.5, 4, and 6 mm² solar cables -
1463063 | PV-FT-C2M-C-2,5-85-RD-FLC | Photovoltaic ConnectorPV Connector, Male, Cable Length: 85mm Nominal current: 27 A, nom. voltage: 1500 V, connection method: Crimp, colour: black -
1463064 | PV-FT-C2F-C-2,5-75-BU-FLC | Photovoltaic connectorPV Connector, Female, Cable Length: 85mm Nominal current: 27 A, nom. voltage: 1500 V, connection method: Crimp, colour: black -
1622146 | PV-C-M/F-PRO/F-1500/8-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems -
1622147 | PV-C-M/F-PRO/F-1500/10-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems -
1622148 | PV-C-M/F-PRO/F-1500/12-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems -
1622149 | PV-C-M/F-PRO/F-1500/15-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems -
1622150 | PV-C-M/F-PRO/F-1500/20-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems -
1622151 | PV-C-M/F-PRO/F-1500/25-EU | Photovoltaic connectorFuse connector for protecting modules and devices in photovoltaic systems
