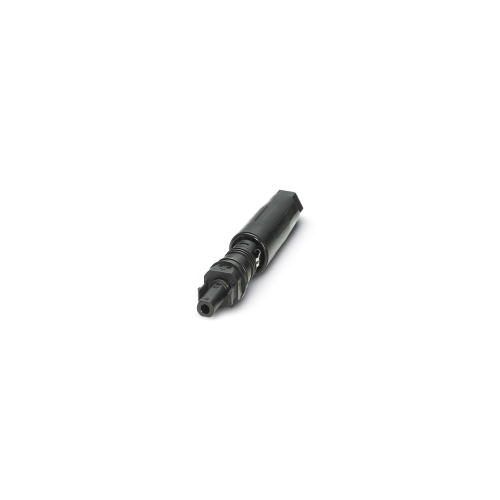

1020776 | PV-C4F-S 2,5-6 (+) | Photovoltaic connector
PV Connector (+) Nominal current: 40 A, nom. voltage: 1500 V, connection method: Spring-cage, colour: black
| Complete Electronics Part No. | 1020776 |
|---|---|
| Manufacturers Part No. | 1020776 |
| Male/Female: | Female |
| Rated Voltage: | 1500V |
| Rated Current: | 40A |
| Mounting: | Cable |
Description
PV-C4F-S 2,5-6 (+) PV Connector
Nominal current: 40 A
- Nominal voltage: 1500 V
- Connection method: Spring-cage
- Colour: Black
- Note: Can only be released using tool
- For Cable Diameter: 5.0mm to 8.0mm
- Operation Temperature: -40 °C to +85 °C
- For Cable type: PV1-F cables
- Insulating Material: PPE (Polyphenylene Ether)
- Contact material: Silver plated copper
- Overall Connector length: 82mm
- Ingress Protection (mated):IP66 / IP68
