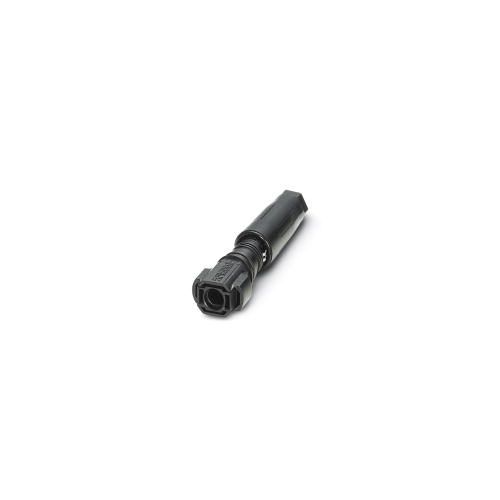

1020775 | PV-C1M-S 2,5-6 (-) 1 | Photovoltaic connector

PV Connector (-) Nominal current: 40 A, nom. voltage: 1500 V, connection method: Spring-cage, colour: black
More Information
Complete Electronics Part No. 1020775
Manufacturers Part No. 1020775
Male/Female: Male
Rated Voltage: 1500V
Rated Current: 40A
Mounting: Cable
Description

PV-C4M-S 2,5-6 (-) PV Connector

Nominal current: 40 A

  • Nominal voltage: 1500 V
  • Connection method: Spring-cage
  • Colour: Black
  • Note: Can only be released using tool
  • For Cable Diameter: 5.0mm to 8.0mm
  • Operation Temperature: -40 °C to +85 °C
  • For Cable type: PV1-F cables
  • Insulating Material: PPE (PolyPhenylene Ether)
  • Contact material: Silver plated copper
  • Overall Connector length: 82mm
  • Ingress Protection (mated):IP66 / IP68
