H-BS & H-BVE Series

Lapp H-BS & H-BVE Series Inserts

Lapp Group is one of the world’s most advanced and prominent suppliers of cables, accessories and connectors. Lapp produces cables and conductors for a variety of industries and markets: mechanical and systems engineering, the automotive industry, MSR technology, electrical and installations engineering, EDC and more.

Epic® Connectors are a reliable connector for industrial applications, with safe and removable connection in machine building, control cabinets and in outdoor applications.

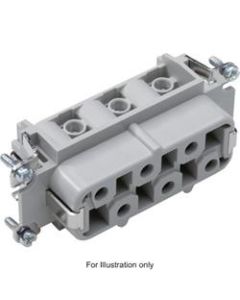

 Lapp Epic® H-BS Series

               10171600 | H-BS 6 BS | Lapp Epic® H-BS Insert

  • Inserts for high currents
  • The standard connector insert is suitable for current load up to 35A
  • Can be used, for example, in drive systems or mechanical engineering.

 Info

Standard insert for currents up to 35A for railway applications

 Benefits

  • High load capacity for currents up to 35A
  • A Screw connection up to a conductor cross-section of 6 mm²
  • Railway applications
  • Fire protection on railway vehicles
  • Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL4

Application range

  • Railway applications / vehicle construction
  • Plant engineering
  • Mechanical engineering
  • Drive systems

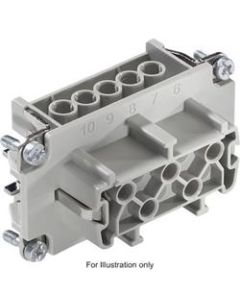

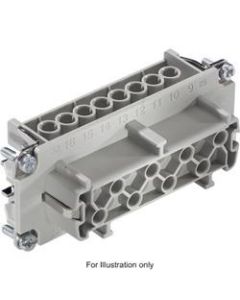

 Lapp Epic® H-BVE Series

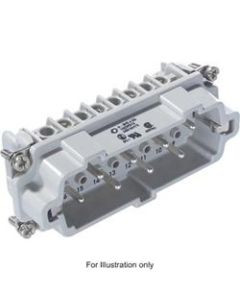

               10239010 | H-BVE 6 SS | Lapp Epic® H-BVE Insert



  • The tried and tested standard inserts for easy assembly
  •  These high-voltage inserts are additionally equipped with 2 switching contacts
  • The multi-pole insert has delayed switching contacts
  • Which interrupts the power supply of the respective connection before the working contacts are disconnected.
  • The multi-functional insert can be used for a broad range of applications, from mechanical engineering and the plastics industry through to lighting and sounds systems.
  • Tried and tested screw connection for easy installation
  • The crimp termination can be used for higher voltages and currents
  • Conductor connection up to 4mm²
  • Cage clamp gives vibration-proof and a fast conductor connection
  • Push-in version for a fast and easy tool-free connection
  • Screw, Crimp, cage clamp and push-in version – freely combinable
  • Multifunctional insert for versatile applications

 Info

  • Tried-and-tested screw connection for easy installation
  • Screw, Crimp, Cage Clamp and Push-In version - freely combinable.
  • For railway applications

 Benefits

  • The standard inserts with screw, crimp cage clamp and push-in connection
  • The tried-and-tested EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents.
  • Railway applications
  •  Fire protection on railway vehicles: Test according EN 45545-2. Requirement sets R22 and R23. Hazard level HL1, HL2 and HL4
  • UL-tested for applications in control cabinets according to UL 508 / UL 2237

Application range

  • Mechanical engineering
  • Plastics industry
  • Light & sound technology
  • Railway applications / vehicle construction
