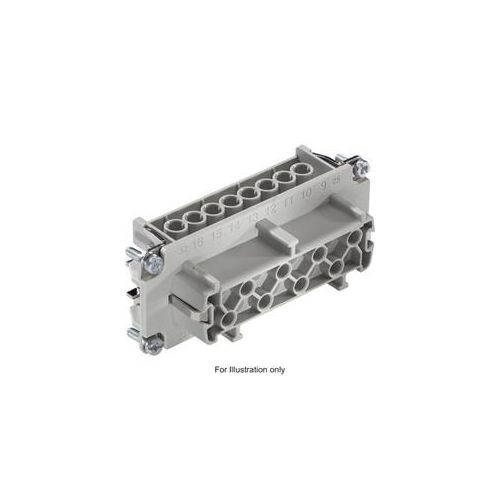

10240010 | H-BVE 6 BS | Lapp Epic® H-BVE Insert
Lapp Epic® H-BVE Insert H-BVE 6 BS
| Complete Electronics Part No. | 10240010 |
|---|---|
| Manufacturers Part No. | H-BVE 6 BS |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BVE Insert |
| Number of poles | 6+2+PE |
| Male/Female: | Female |
| Termination: | Screw |
| Rated Voltage: | 630V |
| Rated Current: | 16A |
Description
10240010 / H-BVE 6 BS
Lapp Epic® H-BVE Insert H-BVE 6 BS
- High Voltage Insert with 2 Switching Contacts
- Number of Contacts: 6+2+PE
- Rated Voltage: IEC 630V
- Rated Current: IEC 16A
- Termination: Screw
- Contact Type: Female
- Connection Cross Section : 0.5 - 2.5mm²
- Contacts: Copper Alloy, Hard Silver Plated
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 10, H-B 10 and QUICK & EASY Mount
